Overview - Front Side Window

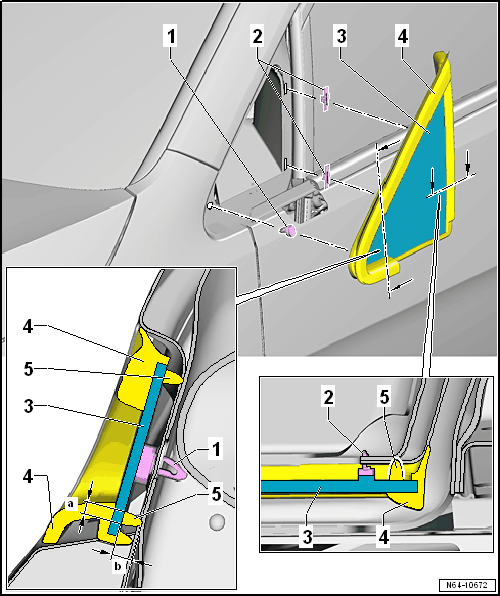

Fig 1: Exploded View Of Front Side Window
GWWN64-10672Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Centering Clip
  2. Clip
    • Quantity: 2
  3. Front Side Window
  4. Seal
    • Component of the front side window
  5. PUR Adhesive Sealant
    • Bead diameter: width = 6.5 mm -dimension a-, height = 10 mm -dimension b- (including residual material on window glass and window glass flange)
    • Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
