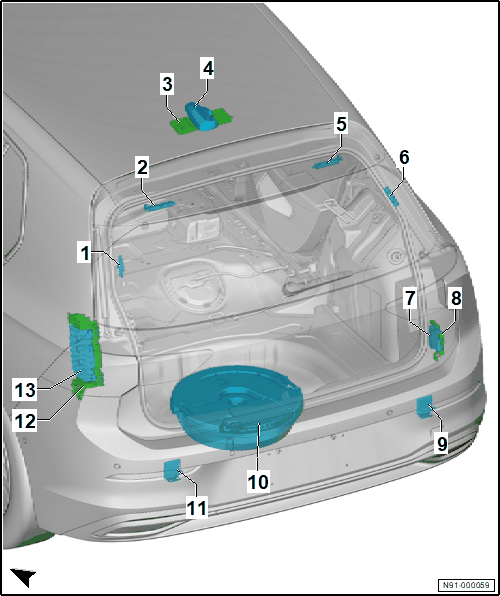

Component Location Overview - Components/Control Modules In Rear Section Of Vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. FM Frequency Filter in Positive Wire -R179-
   • Refer to FM Frequency Filter in Negative Wire -R178- / FM Frequency Filter in Positive Wire -R179-, REMOVING AND INSTALLING  .
2. Antenna Module
   • Depending on equipment/version
   • With Digital Radio Antenna -R183-
   • With Radio Antenna 2 -R93-
   • With TV Antenna 2 -R56-
   • Refer to Antenna Module, Removing and Installing
3. Internet Access Control Module -J666-
   • Refer to Internet Access Control Module -J666-, REMOVING AND INSTALLING  .
4. Roof Antenna -RX5-
   • Depending on equipment/version
   • With Antenna for External Communication with Vehicle -R387-
   • With GPS Antenna -R50-
   • With LTE Antenna 1 -R297-
   • Refer to Roof Antenna -RX5-, REMOVING AND INSTALLING
5. Antenna Module
   • Depending on equipment/version
   • With Antenna -R11-
   • With TV Antenna 1 -R55-
   • Refer to Antenna Module, Removing and Installing
6. FM Frequency Filter in Negative Wire -R178-
   • Refer to FM Frequency Filter in Negative Wire -R178- / FM Frequency Filter in Positive Wire -R179-, REMOVING AND INSTALLING  .
7. Transceiving Stabilization Control Module -R308-
   • Refer to Transceiving Stabilization Control Module -R308-, REMOVING AND INSTALLING  .
8. Transceiving Stabilization Control Module -R308- LTE Antenna 2 -R306-
   • Refer to LTE Antenna, Removing and Installing  .
9. Subwoofer -R211-
   • Refer to Subwoofer R211, Removing and Installing, Spare Tire Well  .
10. Left Antenna Module -R108-
    • Depending on equipment/version
    • Refer to LTE Antenna, Removing and Installing  .
11. Bracket for Digital Sound System Control Module -J525-
    • Refer to Digital Sound System Control Module J525, Removing and Installing
12. Digital Sound System Control Module -J525-
    • Refer to Digital Sound System Control Module J525, Removing and Installing
