Screen Separator, Removing And Installing: Removing

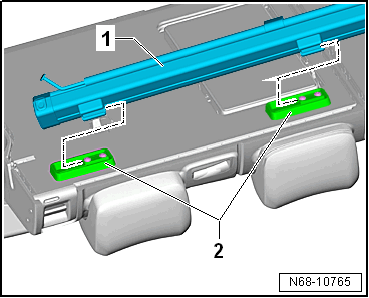

GWWN68-10765Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold both rear seat backrests forward.

-- Remove the screen separator -1- to the right from the mounts -2- on the 2/3 rear seat backrest and remove.
