Screen Separator Mount, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
NOTE:

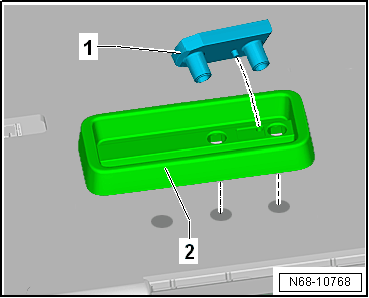

Note the installation position of the insert -1- and the mount -2-.
Secure the mount -2- in the left threaded holes.
Insert the tab on the insert -1- into the mount opening -2-.
Remove the locking fluid from the bolt threads using a wire brush. Then insert the bolts with locking compound. Refer to the Parts Information.
Remove the locking fluid from the bolt holes, for example using a thread tap.
