Front USB Interface Cover: Removing

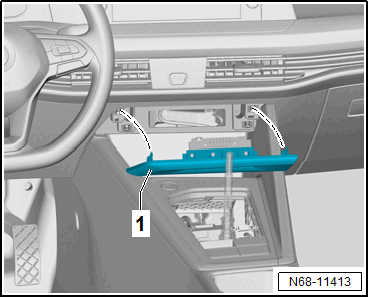

-- Unclip the front USB interface cover -1- using the Wedge Set: T10383  and remove.

GWWN68-11413Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector.
