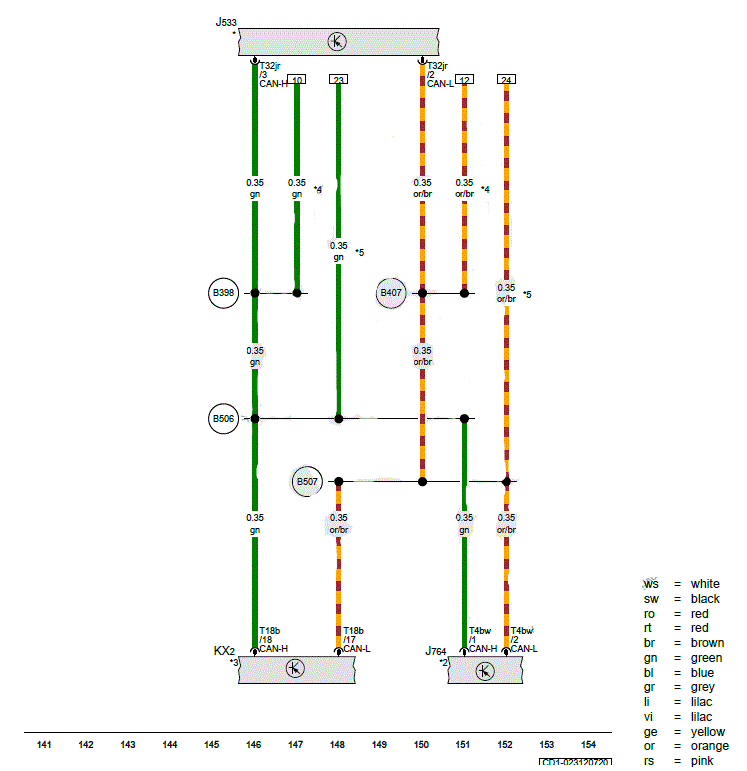

Data Bus on Board Diagnostic Interface, Electronic Steering Column Lock Control Module, Instrument Cluster
J533
Data Bus on Board Diagnostic Interface
J764
Electronic Steering Column Lock Control Module
KX2
Instrument Cluster
T4bw
4-Pin Connector, Black
T18b
18-Pin Connector, Black
T32jr
32-Pin Connector, Black
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506
Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507
Comfort CAN Bus Low Connection (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Instrument Cluster
*4
For LHD Vehicles
*5
For RHD Vehicles
