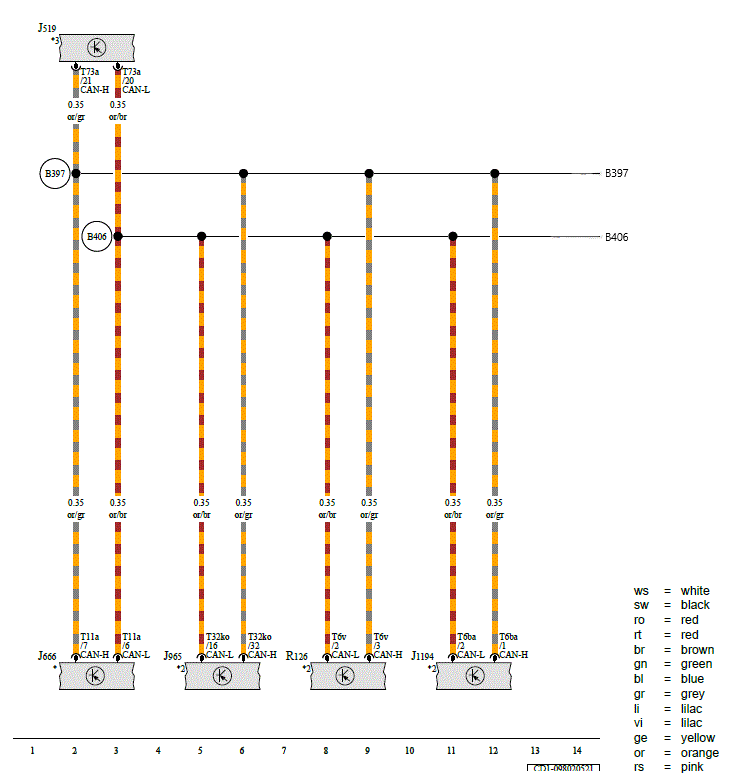

Vehicle Electrical System Control Module, Internet Access Control Module, Access/Start System Interface, Burglary Protection Control Module 4, Telephone Baseplate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

J666

Internet Access Control Module

J965

Access/Start System Interface

J1194

Burglary Protection Control Module 4

R126

Telephone Baseplate

T6ba

6-Pin Connector, Black

T6v

6-Pin Connector, Brown

T11a

11-Pin Connector, Black

T32ko

32-Pin Connector, Gray

T73a

73-Pin Connector, Black

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Emergency Call Module Wiring Diagram

*2

Refer to the Applicable Cell Phone System Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
