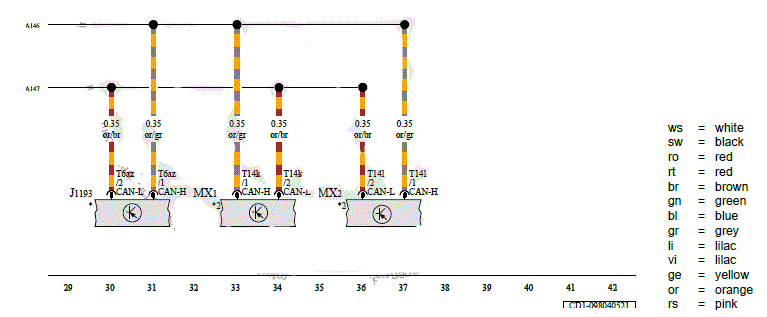

Burglary Protection Control Module 3, Left Front Headlamp, Right Front Headlamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J1193

Burglary Protection Control Module 3

MX1

Left Front Headlamp

MX2

Right Front Headlamp

T6az

6-Pin Connector, Black

T14k

14-Pin Connector, Black

T14l

14-Pin Connector, Black

A146

Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)

A147

Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Headlamps
