Expansion Valve, Removing And Installing: Removing

Immediately seal off any open lines and connections with clean plugs from the Engine Bung Set: VAS 6122  .

Continuation

-- Remove the refrigerant lines with the inner heat exchanger. Refer to Refrigerant Lines with Inner Heat Exchanger, Removing and Installing  .

Vehicles with High-Voltage System

-- Remove the refrigerant lines to the expansion valve. Refer to Refrigerant Lines to Expansion Valve, Removing and Installing  .

Continuation for all vehicles

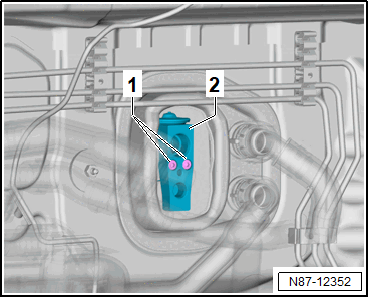

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the expansion valve -2-.
