Fresh Air Intake, Removing And Installing: Removing

-- Remove the cover for the fresh air intake. Refer to Fresh Air Intake Cover, Removing and Installing  .

-- Unclip the bracket with the Air Quality Sensor -G238-.

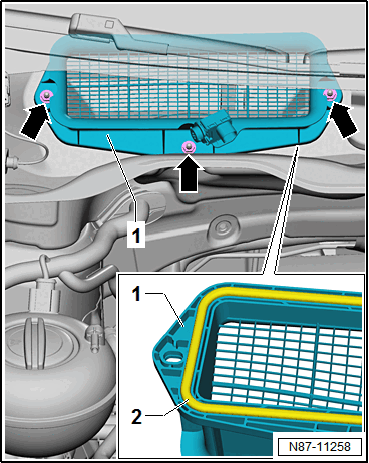

-- Remove the nuts -arrows-.

GWWN87-11258Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fresh air intake -1- from the plenum chamber.
