Fresh Air/Recirculating Air/Back Pressure Door Adjuster, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Check the function of the doors and linkage before installing.

-- Check if the levers and shafts are seated correctly in the mount.

-- Check the position of the operating lever -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Conditions

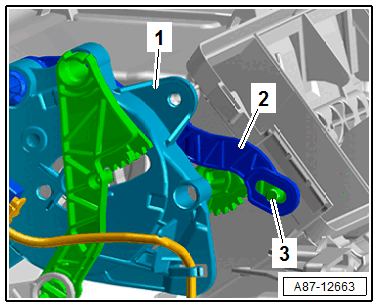

• When replacing the afresh air/recirculating air/back pressure door adjuster -1- the operating lever -2- must engage in the operating lever -3-.
