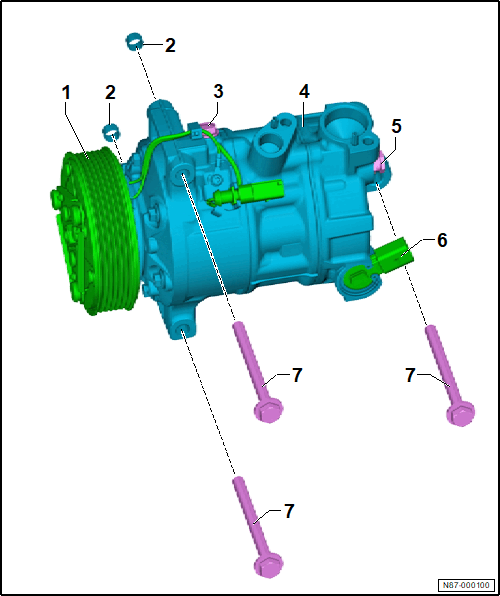

Overview - A/C Compressor
- Belt Pulley
- Depending on equipment/version
- Refer to Overview - Belt Pulley .
- Alignment Sleeve
- Quantity: 2
- Oil Drain Plug
- Only remove on an empty refrigerant circuit
- Depending on equipment/version
- Denso 30 Nm
- Mahle/Delphi 20 Nm
- Sanden 15 Nm
- A/C Compressor
- Refer to A/C Compressor, Removing and Installing .
- Refer to A/C Compressor, Removing and Installing on Bracket .
- Pressure Relief Valve
- Protects the refrigerant circuit against excessive pressure
- A/C Compressor Regulator Valve -N280-
- Depending on equipment/version
- Bolt
- Quantity: 3
- 23 Nm
