Belt Pulley, Removing And Installing, SANDEN A/C Compressor: Installing

Install in the reverse order of removal while noting the following:

-- Install the circlip -4- on the correct side.

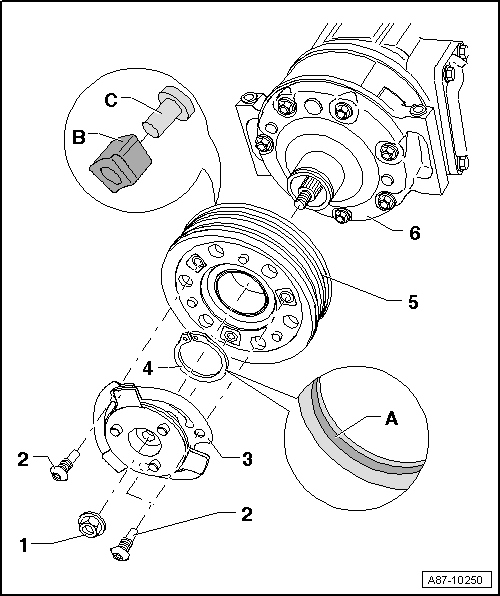

Fig 1: Belt Pulley Exploded View

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Conditions

• The beveled insertion edge -A- must point to the drive plate -3-.
