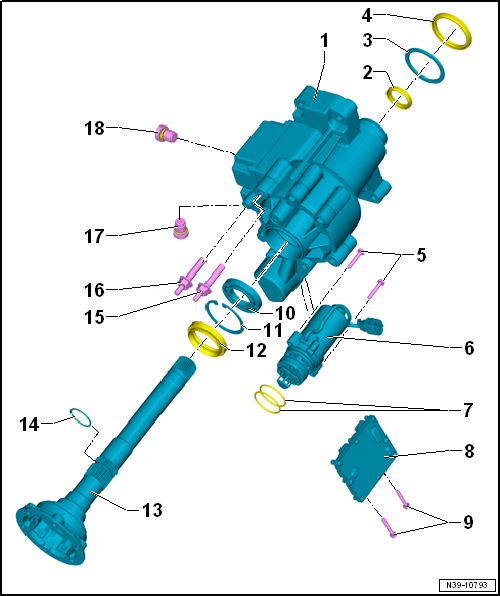

Overview - Front Axle Differential Lock Components
WARNING: This page is about a different variant/trim than selected.
- Front Axle Differential Lock
- Removing. Refer to FRONT AXLE DIFFERENTIAL LOCK, REMOVING .
- Installing. Refer to FRONT AXLE DIFFERENTIAL LOCK, INSTALLING .
- Seal
- Replace after removing
- For the flange shaft in front axle differential lock
- Replacing with front axle differential lock removed. Refer to RIGHT FLANGE SHAFT SEAL INSIDE FRONT AXLE DIFFERENTIAL LOCK, REPLACING
- Support Washer
- No replacement part
- Seal
- Replace after removing
- Between the front axle differential lock and manual transmission
- Replacing with front axle differential lock removed. Refer to SEAL BETWEEN FRONT AXLE DIFFERENTIAL LOCK AND MANUAL TRANSMISSION, REPLACING ON FRONT AXLE DIFFERENTIAL LOCK
- Bolts
- 9 Nm
- All-Wheel Drive Clutch Pump All-Wheel Drive Clutch Pump -V181-
- Removing and installing. Refer to Front Axle Differential Lock Components .
- O-Ring
- Replace if damaged
- For All-Wheel Drive Clutch Pump All-Wheel Drive Clutch Pump -V181-
- Coat the O-rings with front axle differential lock fluid
- Differential Locks Control Module -J647-
- Removing and installing. Refer to Differential Locks Control Module -J647-, REMOVING AND INSTALLING .
- Bolts
- 9 Nm
- Ball Bearing
- For the flange shaft in front axle differential lock
- Replacing with front axle differential lock removed. Refer to FLANGE SHAFT BALL BEARING, REPLACING
- Circlip
- For ball bearing
- Seal
- Replace after removing
- For the flange shaft
- Replacing with front axle differential lock installed. Refer to RIGHT SEAL, REPLACING .
- Flange Shaft
- Removing and installing. Refer to RIGHT SEAL, REPLACING .
- Circlip
- Replace after removing the flange shaft
- For the flange shaft in front axle differential lock
- Bolt
- 40 Nm
- With an M8 threaded pin
- Bolt
- 40 Nm
- With an M8 threaded pin
- Fluid Drain Plug
- 15 Nm
- Replace after removing
- With an O-ring
- Coat the O-ring with front axle differential lock fluid
Allocate the front axle differential lock fluid. Refer to Parts Information.
- Fluid Filler Plug
- 15 Nm
- Replace after removing
- With an O-ring
- Coat the O-ring with front axle differential lock fluid
Allocate the front axle differential lock fluid. Refer to Parts Information.
