Shift Mechanism, Servicing: Installing

The cable retainer must be behind the catch -arrow 2-.

-- Install the clip -arrow 1- and make sure it is locked into place.

• The cable retainer may be removed only when the selector relay lever is removed. Refer to Fig 1.

-- Press the cable retainer on the selector relay lever. Refer to Fig 2.

-- Install the selector relay lever together with the cable retainer all the way in.

• The clip -arrow 1- secures the selector relay lever.
• Make sure the clips locks securely.
• The cable retainer must be behind the tab -arrow 2- (see previous image).

With the selector relay lever removed: pry the selector cable retainer out of the selector relay lever.

• The selector relay lever is removed.

-- Insert a flat-head screwdriver -A- between the bushing -B- and the selector relay lever.

Installing the cable retainer

• The selector relay lever is removed.
• Lubricate the cable retainer pins.
• Refer to the Parts Information for the grease allocation.

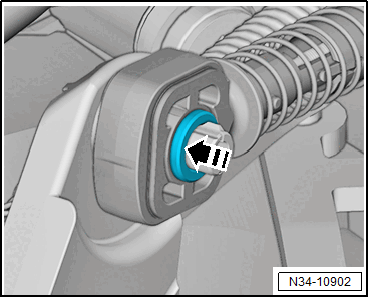

• The cable retainer may only be installed at the bushing -arrow-.
• The cable retainer must move freely on the selector relay lever.
• It must be behind the tab -arrow 2-. Refer to Figure.

Removing the cable retainer from the gearshift cable and selector cable

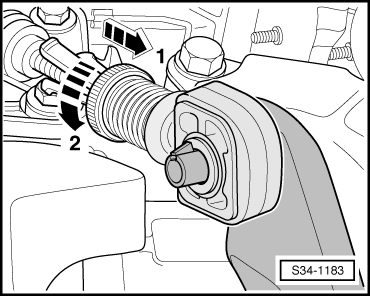

-- Pull the cable retainer all the way forward -arrow 1- and lock it in -direction of arrow 2-.

-- Remove the cable -B- from the cable retainer -A-.

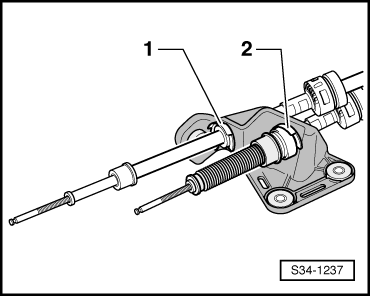

Installation position of lock washers 1 and 2

-- Install the lock washers -1- and -2- by hand, do not use any striking tools.
