Leak Detection Pump, Removing And Installing, From 10/2018: Removing

-- Remove the EVAP system air filter. Refer to EVAP CANISTER AIR FILTER, REMOVING AND INSTALLING .

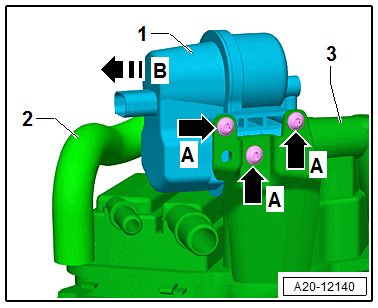

-- Remove the bolts -arrows A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Leak Detection Module -GX36- -1- with the hose -2- to the left in the direction of -arrow B-.

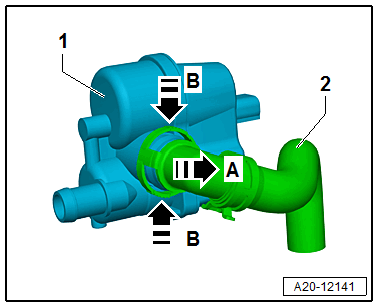

-- Remove the hose -2- from the Fuel Tank Leak Detection Module -GX36- -1- in the direction of -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the releases together for this in the direction of -B arrows-.
