Overview - Horn

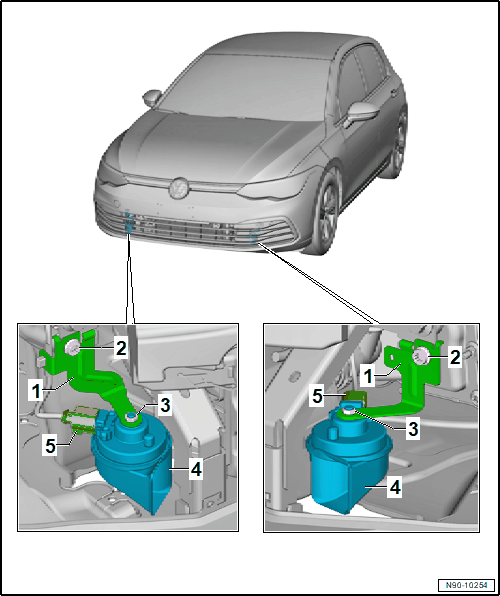

Fig 1: Horn Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- For the horn
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 18 Nm.
Nut
- Tightening specification: 9 Nm.
Horn
- High Tone Horn -H2- is installed on the left
- Low Tone Horn -H7- in installed on the right
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Connector
