SUBFRAME, Removing And Installing: Installing
NOTE:
If the door window is not removed, before installing the subframe, install the spreader plug and the expanding pin in the door window.

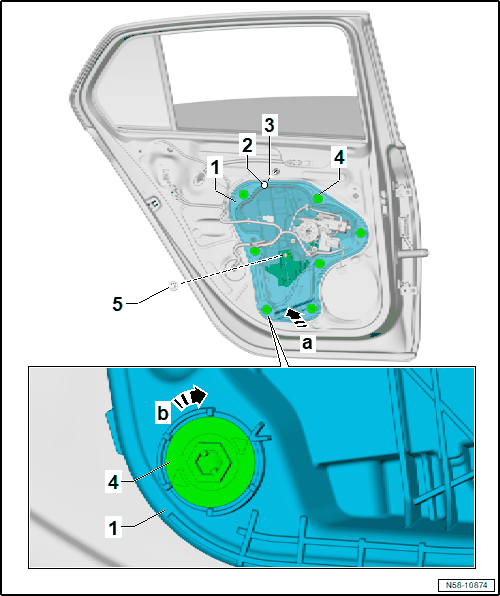

-- Insert the subframe -1- at an angle upward in the door -arrow a-.
-- Push the subframe -1- securely on the door until the seal correctly contacts.
-- Press the clips -4- in the subframe -1-.
-- Turn the clips -4- approximately 90° -arrow b-.
-- Tighten the bolt -3-.
-- Secure the door window. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING .
-- Connect the wiring harnesses.
-- Connect the connectors.
-- Apply the sticker -2-.
-- Push the cap -5- in the subframe -1-.
Install in reverse order of removal. Note the following:
- Before installing perform a function test of the door trim panel.
