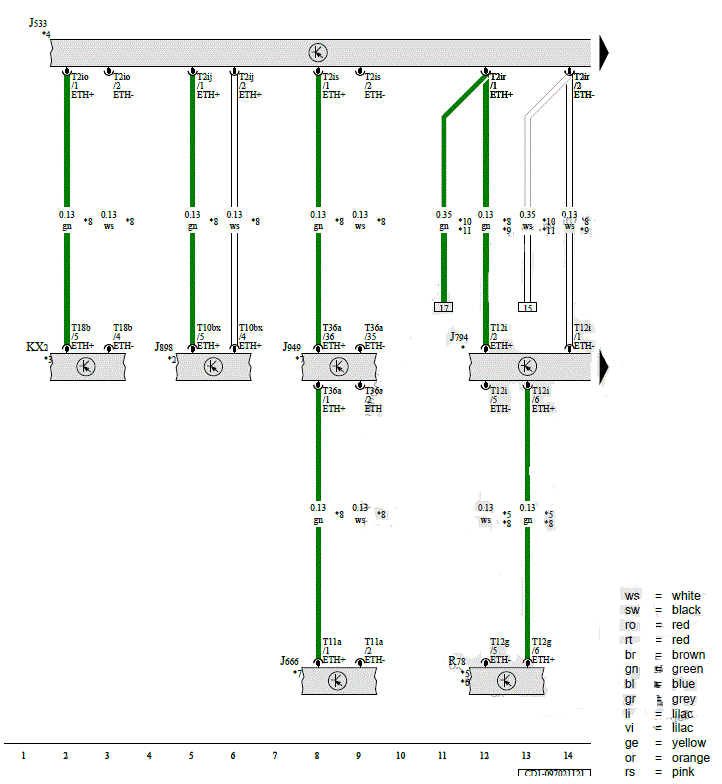

Data Bus on Board Diagnostic Interface, Internet Access Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, Control Module for Emergency Call Module and Communication Unit, Instrument Cluster, TV Tuner

G00618492Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J666

Internet Access Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

J949

Control Module for Emergency Call Module and Communication Unit

KX2

Instrument Cluster

R78

TV Tuner

T2ij

2-Pin Connector, White

T2io

2-Pin Connector, White

T2ir

2-Pin Connector, White

T2is

2-Pin Connector, White

T10bx

10-Pin Connector, Black

T11a

11-Pin Connector, Black

T12g

12-Pin Connector, Black

T12i

12-Pin Connector, Green

T18b

18-Pin Connector, Black

T36a

36-Pin Connector, Black

Refer to the Applicable Multimedia System Wiring Diagram

*2

Refer to Applicable Windshield Projection Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Instrument Cluster

*4

Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface

*5

For Vehicles with Japan Equipment

*6

Refer to the Applicable TV Tuner Wiring Diagram

*7

Refer to Applicable Emergency Call Module Wiring Diagram

*8

The Color of the Wires Depends on Vehicle Equipment

*9

For Vehicles with Standard Equipment

*10

From November 2021

*11

For Vehicles with Convenience Equipment
