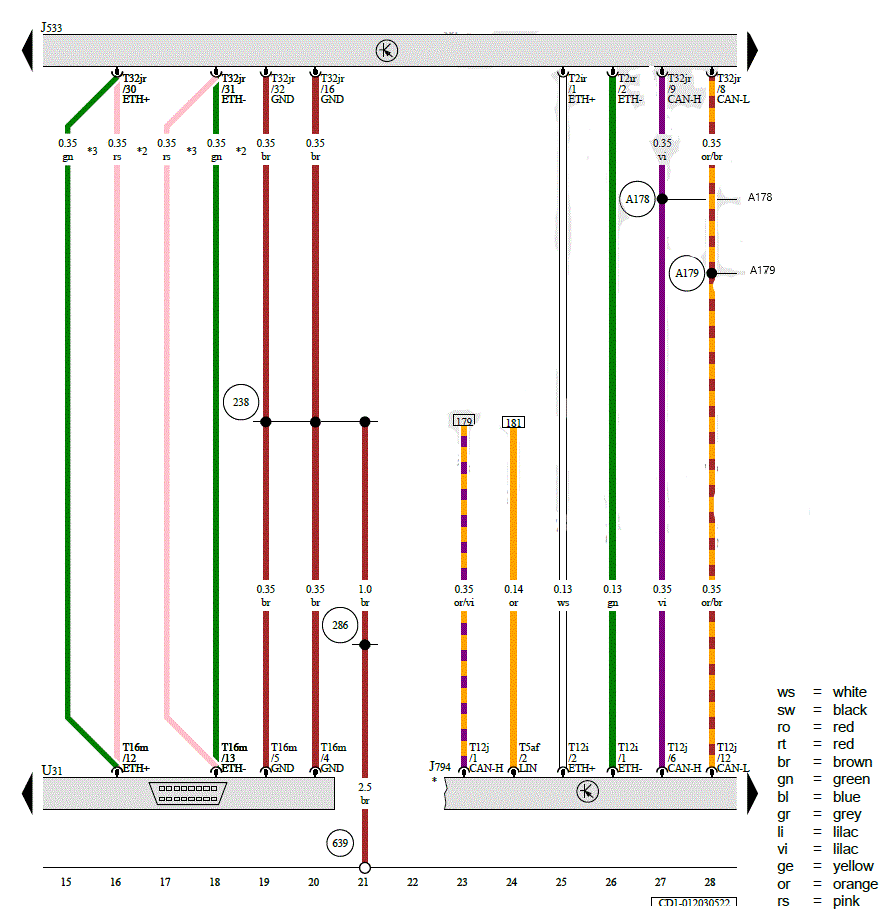

Data Bus on Board Diagnostic Interface, Information Electronics Control Module 1, Diagnostic Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

T2ir

2-Pin Connector, White

T5af

5-Pin Connector, Purple

T12i

12-Pin Connector, Green

T12j

12-Pin Connector, Gray

T16m

16-Pin Connector, Black

T32jr

32-Pin Connector, Black

U31

Diagnostic Connection

238

Ground Connection 1 (in Interior Wiring Harness)

286

Ground Connection 8 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

A178

Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)

A179

Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

Through July 2020

*3

From July 2020
