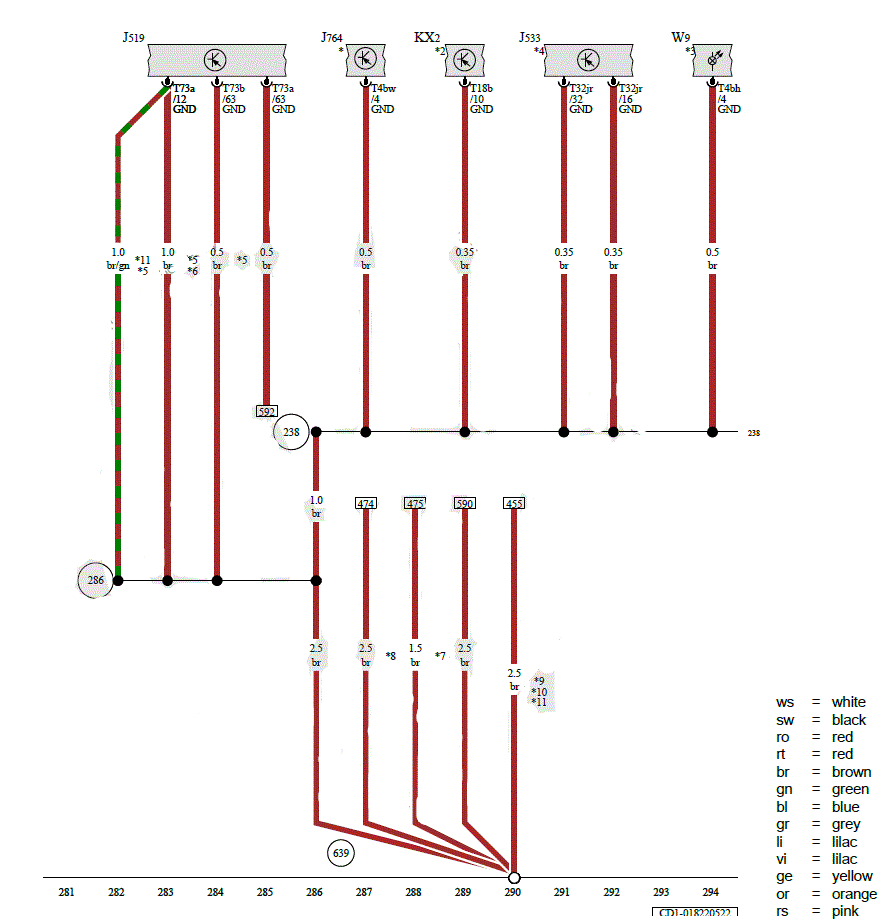

Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface, Electronic Steering Column Lock Control Module, Instrument Cluster, Left Footwell Lamp
J519
Vehicle Electrical System Control Module
J533
Data Bus on Board Diagnostic Interface
J764
Electronic Steering Column Lock Control Module
KX2
Instrument Cluster
T4bh
4-Pin Connector, Black
T4bw
4-Pin Connector, Black
T18b
18-Pin Connector, Black
T32jr
32-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
W9
Left Footwell Lamp
238
Ground Connection 1 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
*
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Instrument Cluster
*3
Refer to Applicable Wiring Diagram for Interior Lamps
*4
Refer to Applicable Wiring Diagram for Data Bus Networking
*5
Depending on Equipment
*6
Through July 2020
*7
For Vehicles Without Lumbar Support
*8
For Vehicles with Lumbar Support Adjustment
*9
For Vehicles with Heated Rear Seats
*10
For RHD Vehicles
*11
From July 2020
