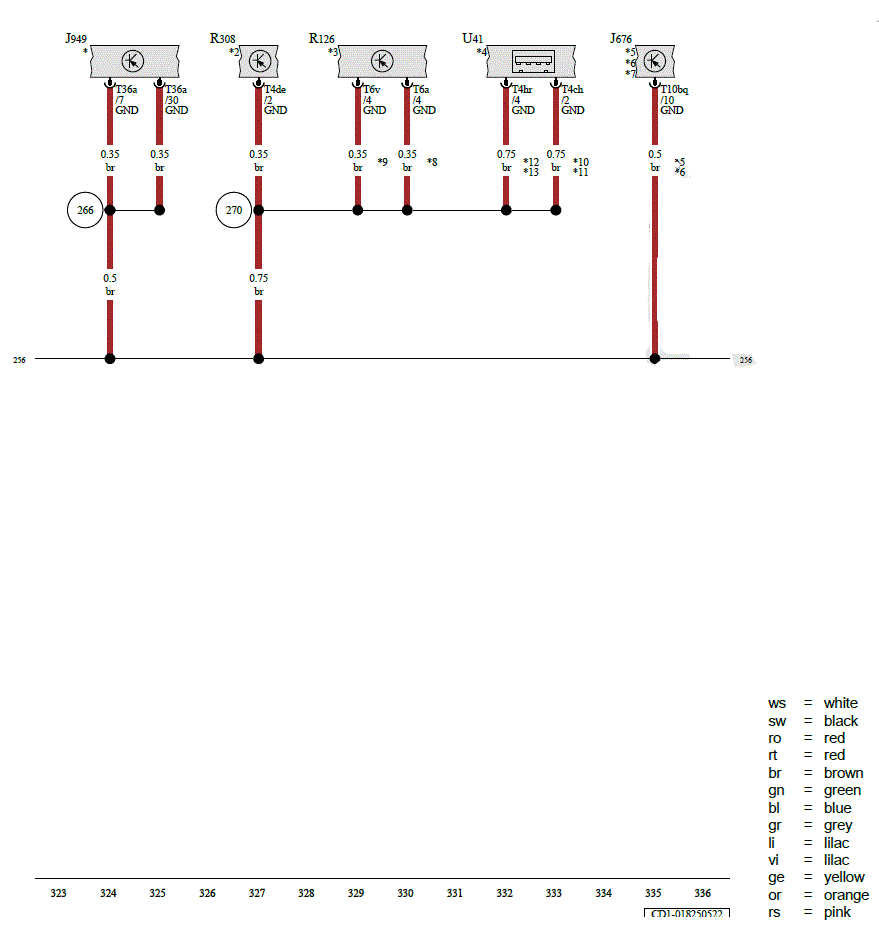

Chip Card Reader Control Module, Control Module for Emergency Call Module and Communication Unit, Telephone Baseplate, Transceiving Stabilization Control Module, USB Connection 1
J676
Chip Card Reader Control Module
J949
Control Module for Emergency Call Module and Communication Unit
R126
Telephone Baseplate
R308
Transceiving Stabilization Control Module
T4ch
4-Pin Connector, Red
T4de
4-Pin Connector, Black
T4hr
4-Pin Connector, Blue
T6a
6-Pin Connector, Black
T6v
6-Pin Connector, Brown
T10bq
10-Pin Connector, Black
T36a
36-Pin Connector, Black
U41
USB Connection 1
256
Ground Connection 2 (in Radio Wiring Harness)
266
Ground Connection (in Navigation Wiring Harness)
270
Ground Connection (in Telephone Wiring Harness)
*
Refer to Applicable Emergency Call Module Wiring Diagram
*2
Refer to Applicable Telephone Systems Wiring Diagram
*3
Refer to the Applicable Cell Phone System Wiring Diagram
*4
Refer to the Applicable Multimedia System Wiring Diagram
*5
For Vehicles with Japan Equipment
*6
From July 2020
*7
Refer to the Applicable TV Tuner Wiring Diagram
*8
For Vehicles Without Near Field Communication
*9
For Vehicles with Near Field Communication
*10
Through July 2022
*11
Not for Vehicles with USB Connection for Increased Charging Capacity
*12
From July 2022
*13
For Vehicles with USB Connection for Increased Charging Capacity
