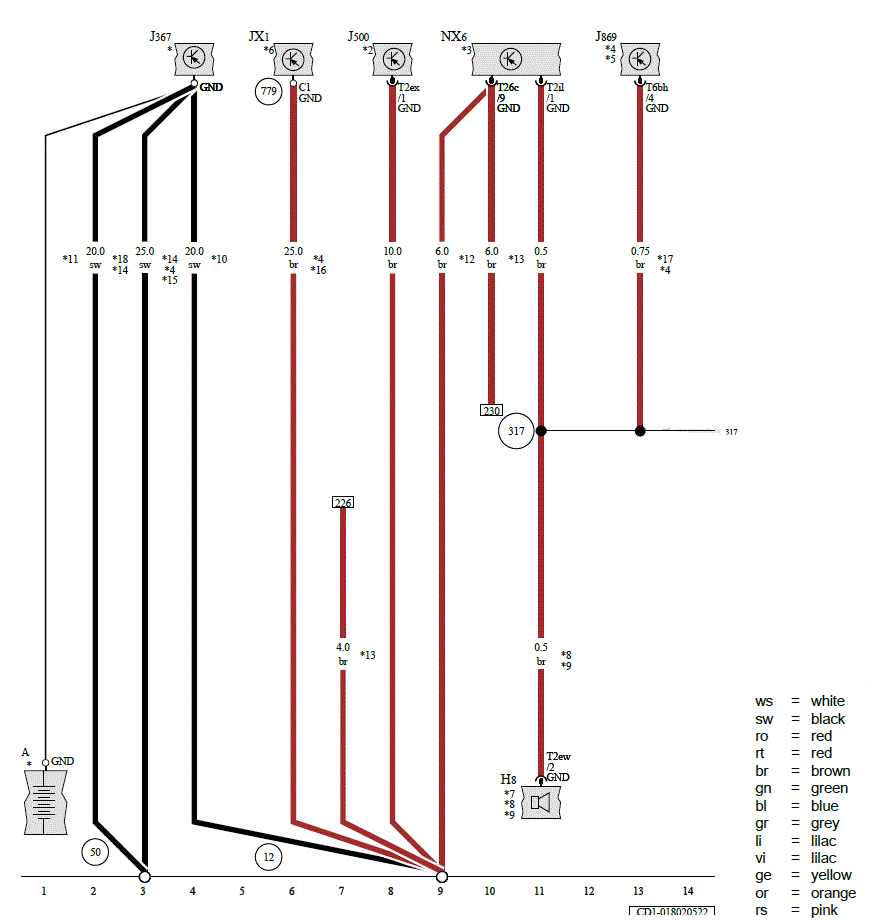

Battery, Anti-Theft Alarm System Horn, Electric Drive Power and Control Electronics, Battery Monitoring Control Module, Power Steering Control Module, Structure-Borne Sound Control Module, Brake Booster
A
Battery H8 Anti-Theft Alarm System Horn
JX1
Electric Drive Power and Control Electronics
J367
Battery Monitoring Control Module
J500
Power Steering Control Module
J869
Structure-Borne Sound Control Module
NX6
Brake Booster
T2ew
2-Pin Connector, Black
T2ex
2-Pin Connector, Black
T2il
2-Pin Connector, Black
T6bh
6-Pin Connector, Black
T26c
26-Pin Connector, Black
12
Ground Connection in Engine/Motor Compartment, Left
50
Ground Connection in Luggage Compartment, Left
317
Ground Connection 7 (in Engine/Motor Compartment Wiring Harness)
779
Electric Drive Power and Control Electronics Ground Connection 1
*
Refer to Applicable Voltage Supply Wiring Diagram
*2
For Vehicles with Electromechanical Power Steering
*3
Refer to Applicable Brake System Wiring Diagram
*4
From July 2020
*5
Refer to the Applicable Engine Sound Generator Wiring Diagram
*6
Refer to Applicable High-Voltage System Pilot Line Wiring Diagram
*7
Refer to the Applicable Anti-Theft Alarm System Wiring Diagram
*8
From July 2021
*9
For USA Only
*10
For Vehicles with a Battery in the Engine/Motor Compartment
*11
On the Battery
*12
For LHD Vehicles
*13
For RHD Vehicles
*14
For Vehicles with Battery in the Luggage Compartment
*15
Through November 2020
*16
For Vehicles with Hybrid Drive
*17
For Vehicles with Engine/Motor Sound Generation
*18
From November 2020
