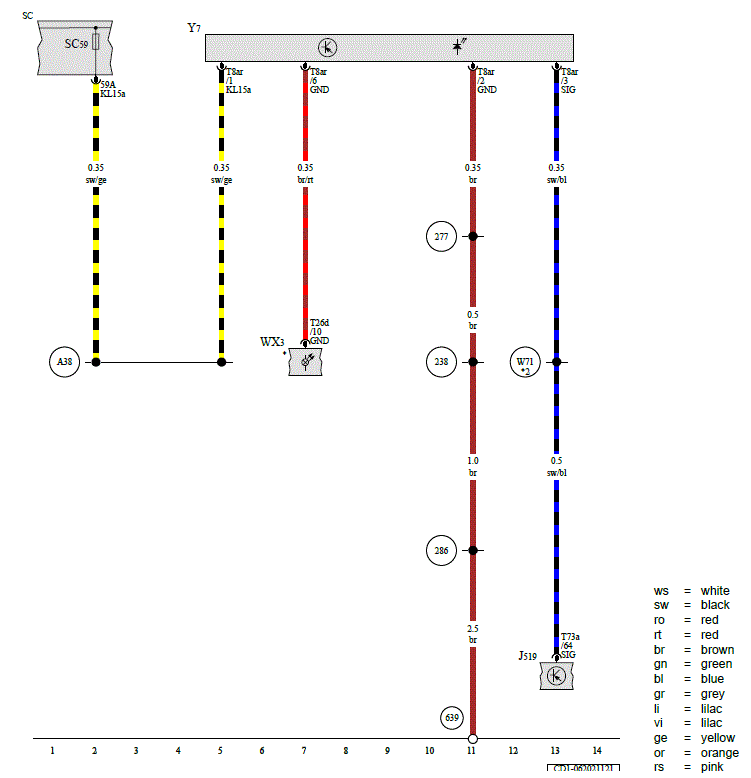

Vehicle Electrical System Control Module, Fuse Panel C, Front Roof Module, Automatic Dimming Interior Rearview Mirror
J519
Vehicle Electrical System Control Module
SC
Fuse Panel C
SC59
Fuse 59 (On Fuse Panel C)
T8ar
8-Pin Connector, Black
T26d
26-Pin Connector, Black
T73a
73-Pin Connector, Black
WX3
Front Roof Module
Y7
Automatic Dimming Interior Rearview Mirror
238
Ground Connection 1 (in Interior Wiring Harness)
277
Ground Connection 3 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
A38
Positive Connection 2 (15a) (in Instrument Panel Wiring Harness)
W71
Back Up Lamp Connection (in Rear Wiring Harness)
*
Refer to Applicable Wiring Diagram for Interior Lamps
*2
Refer to Applicable Tail Lamp Wiring Diagram
