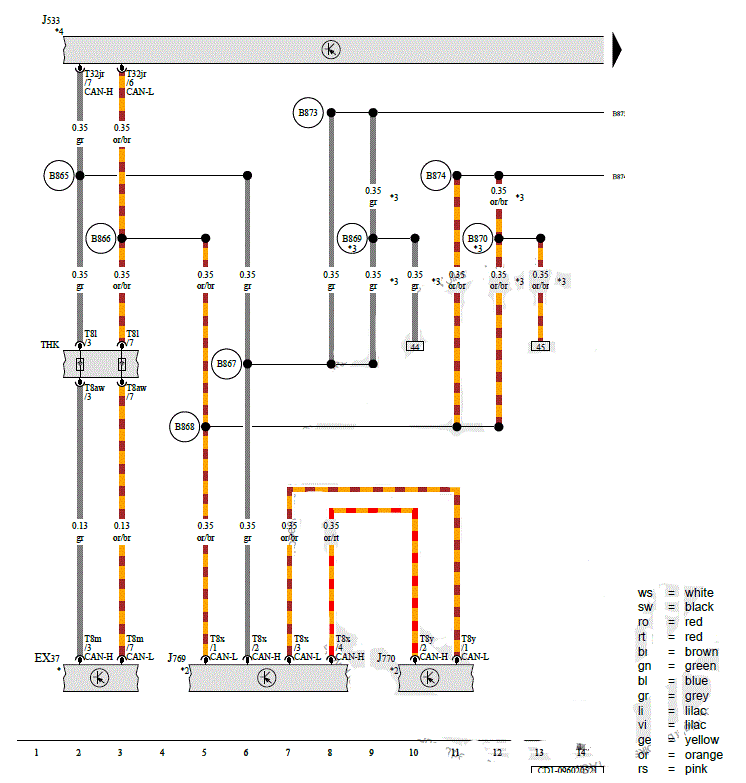

Rear Lid Handle, Data Bus on Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2
EX37
Rear Lid Handle
J533
Data Bus on Board Diagnostic Interface
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
T8aw
8-Pin Connector, Black
T8l
8-Pin Connector, Black
T8m
8-Pin Connector, Black
T8x
8-Pin Connector, Black
T8y
8-Pin Connector, Black
T32jr
32-Pin Connector, Black
THK
Rear Lid Coupling Point
B865
Driver Assistance Systems CAN Bus High Connection 1 (in Main Wiring Harness)
B866
Driver Assistance Systems CAN Bus Low Connection 1 (in Main Wiring Harness)
B867
Driver Assistance Systems CAN Bus High Connection 2 (in Main Wiring Harness)
B868
Driver Assistance Systems CAN Bus Low Connection 2 (in Main Wiring Harness)
B869
Driver Assistance Systems CAN Bus High Connection 3 (in Main Wiring Harness)
B870
Driver Assistance Systems CAN Bus Low Connection 3 (in Main Wiring Harness)
B873
Driver Assistance Systems CAN Bus High Connection 5 (in Main Wiring Harness)
B874
Driver Assistance Systems CAN Bus Low Connection 5 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*2
Refer to Applicable Lane Change Assistance Wiring Diagram
*3
For RHD Vehicles
*4
Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
