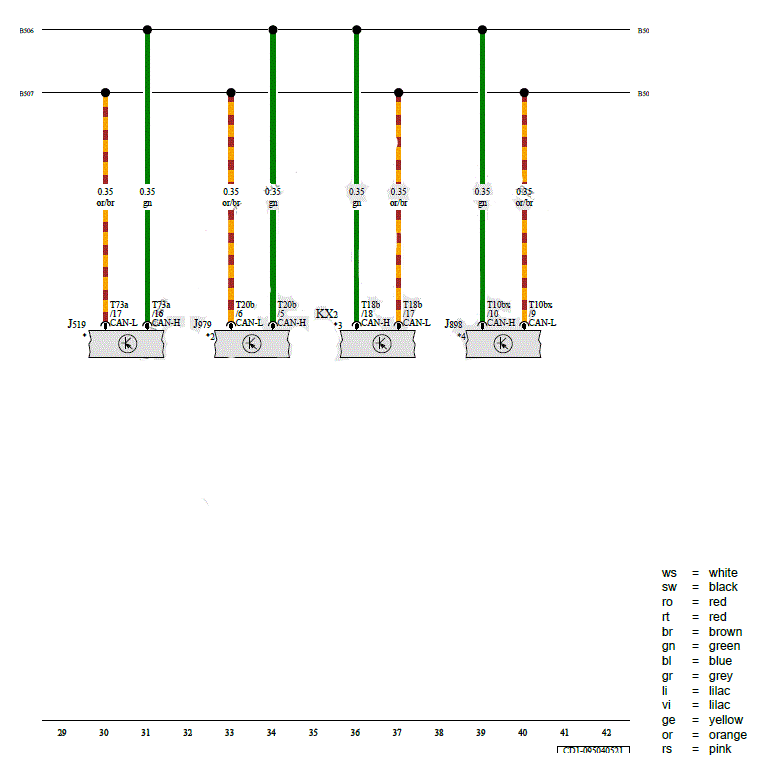

Vehicle Electrical System Control Module, Windshield Projection Head Up Display Control Module, Heating and Air Conditioning Control Module, Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

J898

Windshield Projection Head Up Display Control Module

J979

Heating and Air Conditioning Control Module

KX2

Instrument Cluster

T10bx

10-Pin Connector, Black

T18b

18-Pin Connector, Black

T20b

20-Pin Connector, Black

T73a

73-Pin Connector, Black

B506

Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507

Comfort CAN Bus Low Connection (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram

*2

Refer to Applicable A/C System Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Instrument Cluster

*4

Refer to Applicable Windshield Projection Wiring Diagram
