Overview - Rear Window

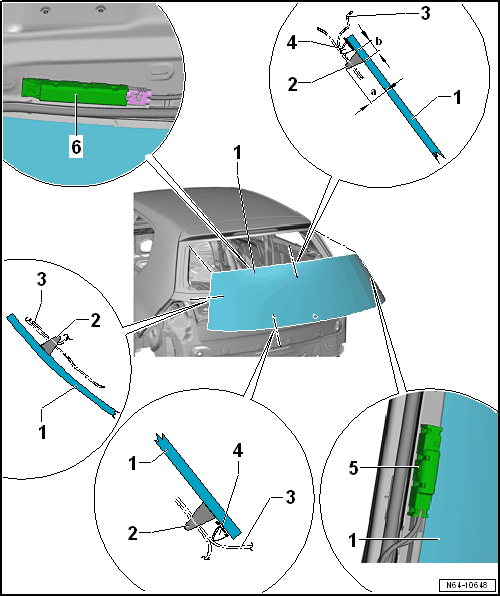

Fig 1: Exploded View Of Rear Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Window
- Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
PUR Adhesive Sealant
- Bead diameter: -Width b- = 7 mm -Height a- Height = 10 mm (including the precoating, residual material on the window and the window flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
Body Flange
Spacer
Rear Window Defogger Connection
Left and Right Antenna Module - R108/ R109-
