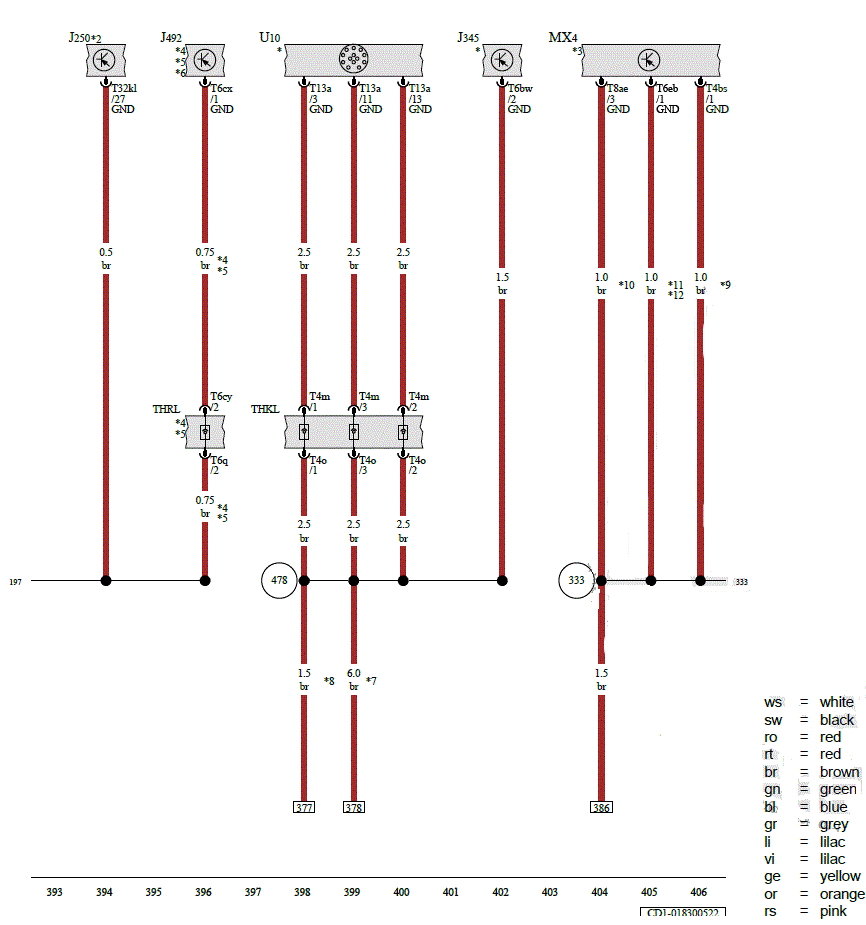

Electronic Damping Control Module, Towing Recognition Control Module, All-Wheel Drive Control Module, Right Tail Lamp, Trailer Socket
J250
Electronic Damping Control Module
J345
Towing Recognition Control Module
J492
All-Wheel Drive Control Module
MX4
Right Tail Lamp
T4bs
4-Pin Connector, Black
T4m
4-Pin Connector, Black
T4o
4-Pin Connector, Black
T6bw
6-Pin Connector, Black
T6cx
6-Pin Connector, Black
T6cy
6-Pin Connector, Black
T6eb
6-Pin Connector, Black
T6q
6-Pin Connector, Black
T8ae
8-Pin Connector, Brown
T13a
13-Pin Connector, Black
T32kl
32-Pin Connector, Black
THKL
Coupling Point on Rear Lid, Left
THRL
Coupling Point in Luggage Compartment, Left
U10
Trailer Socket
197
Ground Connection 4 (in Rear Wiring Harness)
333
Ground Connection 5 (in Rear Wiring Harness)
478
Ground Connection 3 (in Rear Lid Wiring Harness)
*
Refer to the Wiring Diagram for Trailer Towing
*2
Refer to the Applicable Adaptive Chassis DCC Wiring Diagram
*3
Refer to Applicable Tail Lamp Wiring Diagram
*4
For AWD Vehicles
*5
From July 2020
*6
Refer to Applicable AWD Wiring Diagram
*7
For Vehicles with Trailer Socket
*8
For Vehicles with Trailer Setup
*9
For Vehicles Without Dynamic Turn Signals
*10
For Vehicles with Dynamic Turn Signals
*11
For USA Only
*12
From July 2021
