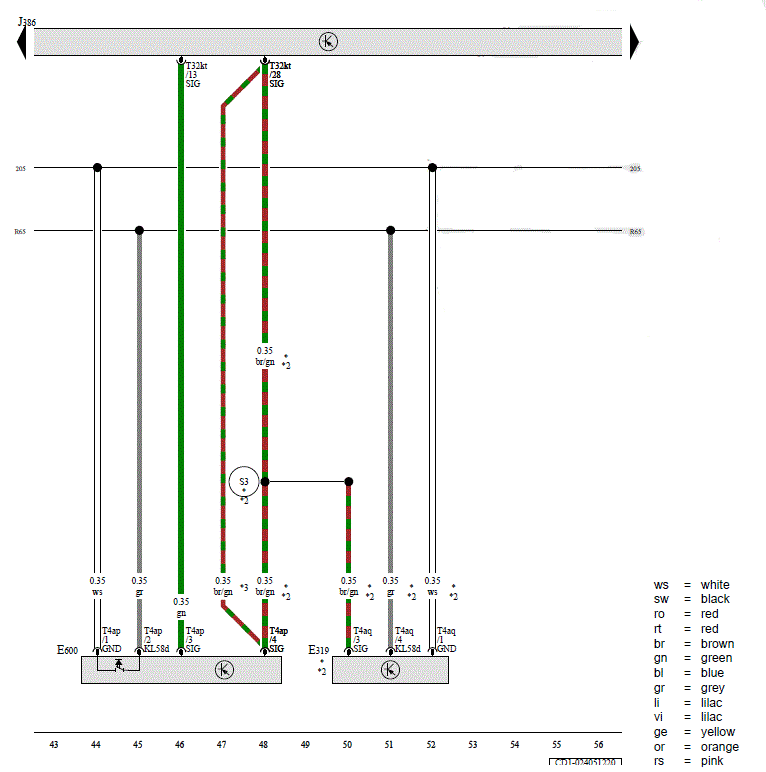

Fuel Filler Door Release Button, Central Locking Button, Driver Door Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E319

Fuel Filler Door Release Button

E600

Central Locking Button

J386

Driver Door Control Module

T4ap

4-Pin Connector, Blue

T4aq

4-Pin Connector, Black

T32kt

32-Pin Connector, Blue

205

Ground Connection (in Driver Door Wiring Harness)

R65

Positive Connection (58) (in Driver Door Wiring Harness)

S3

Switch/Control Module Connection 1 (in Central Locking System Wiring Harness)

*

From July 2020

*2

For Vehicles with Hybrid Drive

*3

For Vehicles Without Hybrid Drive
