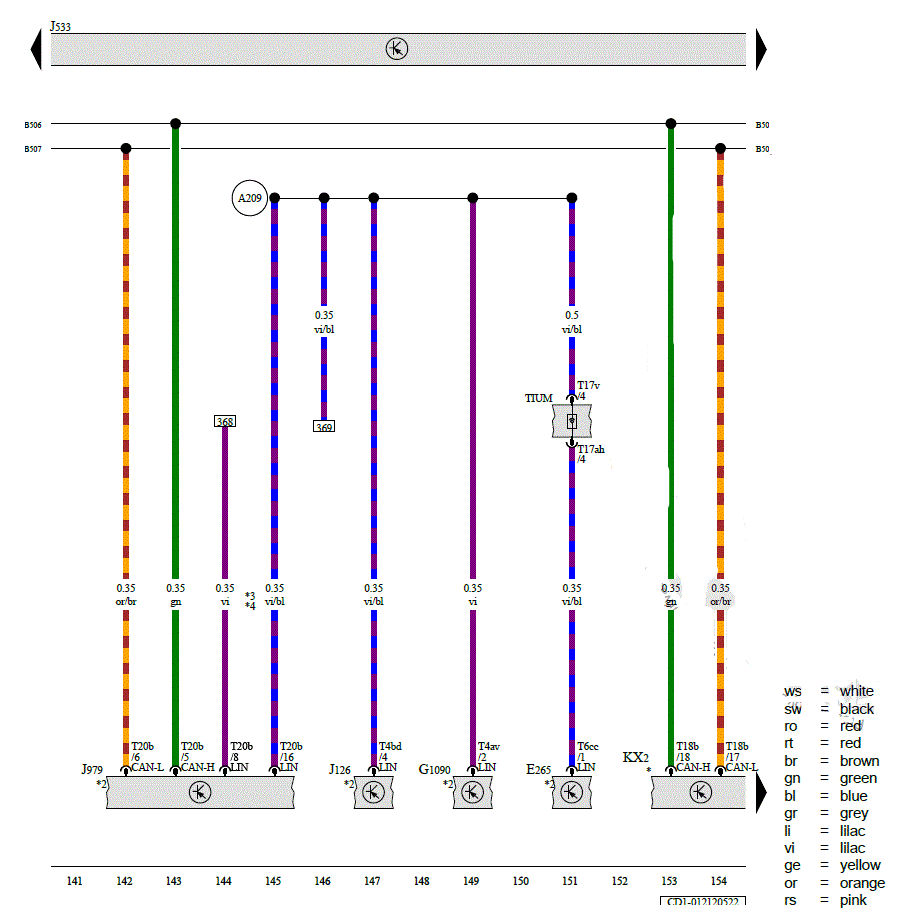

Rear A/C Display Control Head, Vehicle Interior Temperature Sensor, Fresh Air Blower Control Module, Data Bus on Board Diagnostic Interface, Heating and Air Conditioning Control Module, Instrument Cluster
E265
Rear A/C Display Control Head
G1090
Vehicle Interior Temperature Sensor
J126
Fresh Air Blower Control Module
J533
Data Bus on Board Diagnostic Interface
J979
Heating and Air Conditioning Control Module
KX2
Instrument Cluster
T4av
4-Pin Connector, Black
T4bd
4-Pin Connector, Black
T6cc
6-Pin Connector, Black
T17ah
17-Pin Connector, Brown
T17v
17-Pin Connector, Brown
T18b
18-Pin Connector, Black
T20b
20-Pin Connector, Black
TIUM
Coupling Point in Interior, Bottom Center
A209
LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
B506
Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507
Comfort CAN Bus Low Connection (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Instrument Cluster
*2
Refer to Applicable A/C System Wiring Diagram
*3
For Vehicles with Hybrid Drive
*4
From July 2020
