Gearshift Knob, Removing And Installing: Removing

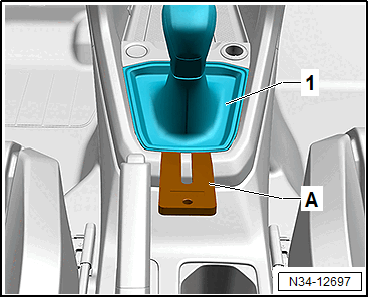

-- Pry up the shift lever boot -1- carefully from the center console insert using the Wedge Set: T10383/1  -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First lift the rear section of the shift lever boot.

-- Roll the selector lever boot up over the gearshift knob.

Fig 1: Identifying Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the clamp -arrow- and remove the gearshift lever knob with the shift lever boot.
