Front Axle Differential Lock, Removing

Special tools and workshop equipment required

Socket and Extended Bit: T10107 A

Fig 1: Identifying Socket And Extended Bit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch the ignition off.

The right drive axle must be removed later in the procedure.

Fig 2: Identifying Left Front Drive Axle Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- With the vehicle still standing on its wheels, loosen the front collar bolt -arrow- a maximum of 90°. Otherwise the wheel bearing will be damaged. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Fig 3: Identifying Heat Shield Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, remove the drive axle heat shield -1- -arrows-. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Remove the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

CAUTION:

Risk of damaging the decoupling element.

-- Remove the front exhaust pipe from the engine and tie it up. Refer to OVERVIEW - MUFFLER, GOLF FWD .

-- Remove the connector -arrow- from the Differential Locks Control Module -J647-.

Fig 4: Locating Axle Differential Lock Control Module Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Oil Level Thermal Sensor -G266-.

Fig 5: Disconnecting Connector From Oil Level Thermal Sensor G266

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pendulum support from the transmission. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .

Fig 6: Identifying Pendulum Support

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drain the oil for the front axle differential lock. Refer to FRONT AXLE DIFFERENTIAL LOCK FLUID, DRAINING AND FILLING .

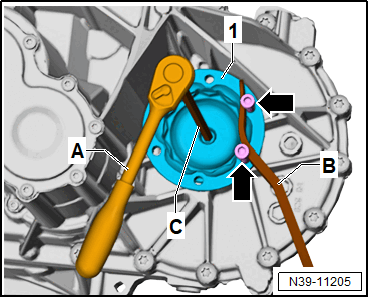

-- Install two bolts into the flange and counterhold the flange shaft with a tire iron -B- to remove the right flange shaft bolt -1- with a Socket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper bolts -arrows- that attach the front axle differential lock to the manual transmission.

Fig 7: Identifying Front Axle Differential Lock Upper Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower bolts -arrows- that attach the front axle differential lock to the manual transmission.

Fig 8: Identifying Front Axle Differential Lock Lower Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the engine/transmission slightly toward the front (a second technician is needed or the Engine Support: T10533 ).

-- Carefully push the front axle differential lock off the manual transmission and remove it.

Prevent connectors -arrow- from becoming damaged (illustrated here with front axle differential lock installed).

Fig 9: Locating Haldex Clutch Pump Connector
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pay attention to how the front axle differential lock is transported. Refer to Front Axle Differential Lock .
