Rear Side Window, Removing And Installing: Installing

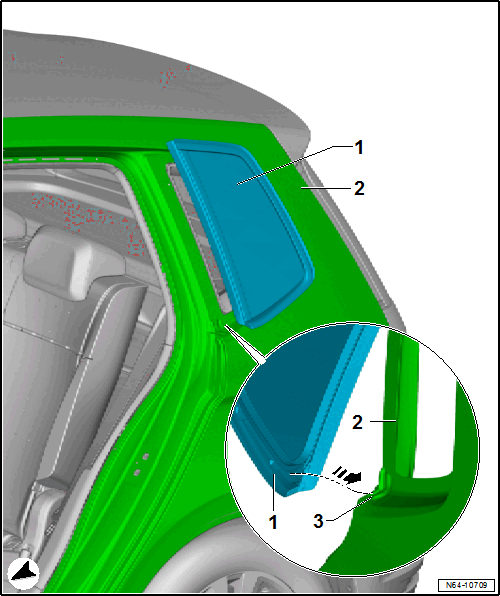

GWWN64-10709Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Prepare the undamaged window for glazing. Refer to UNDAMAGED WINDOW GLASS, PREPARING FOR INSTALLATION .

-- Prepare the new window glass for glazing. Refer to NEW WINDOW GLASS, PREPARING FOR INSTALLATION .

-- Prepare the body flange for glazing. Refer to BODY FLANGE, PREPARING FOR INSTALLATION .

-- Installation Instructions. Refer to INSTALLATION INSTRUCTIONS FOR BONDED WINDOWS .

-- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .

-- Guide the side window with the seal -1- in the guide -3- in direction of -arrow- and press out.

-- Secure the side window with adhesive tape.
