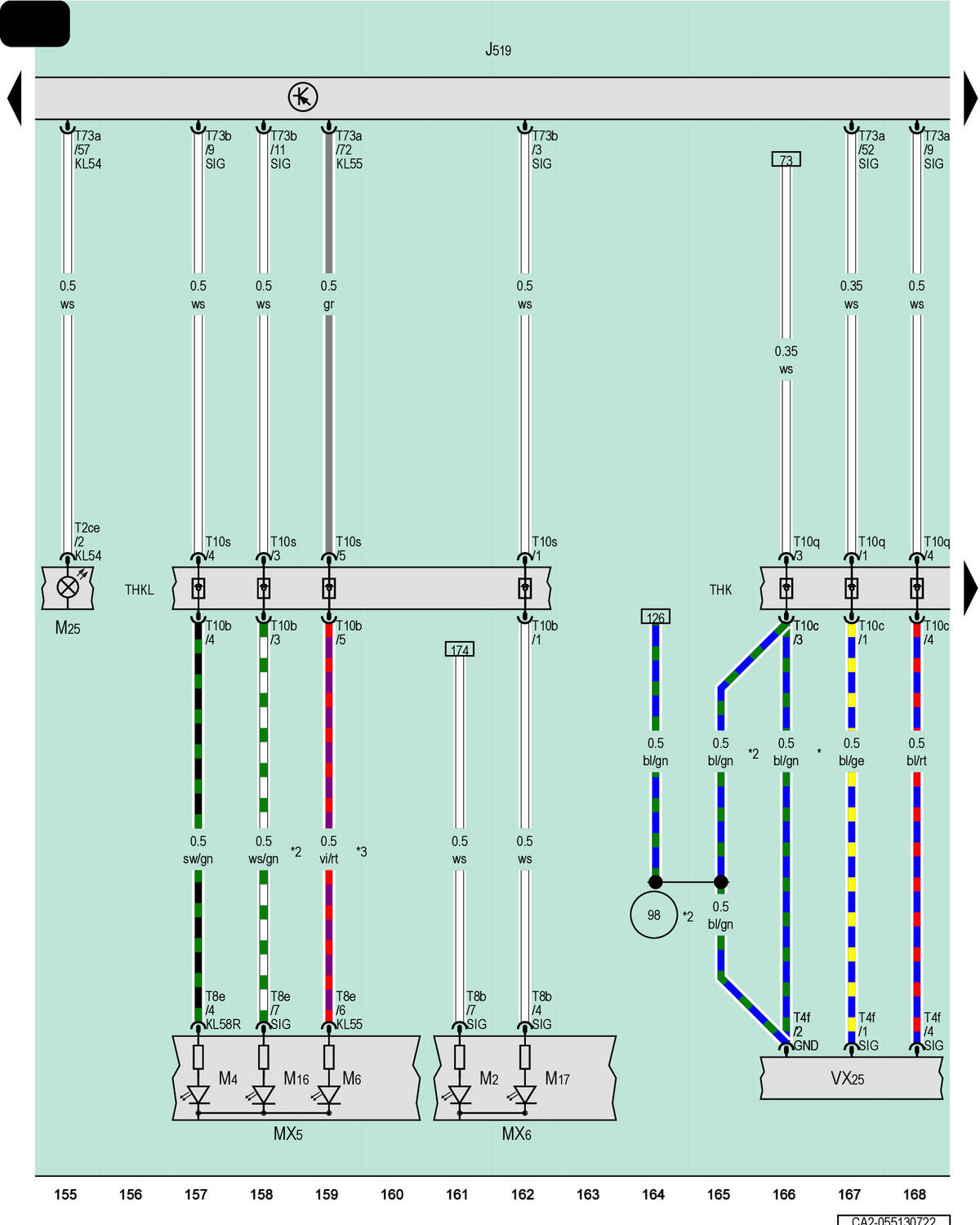

Vehicle Electrical System Control Module, Left Tail Lamp 2, Left Rear Turn Signal Bulb, Right Tail Lamp 2, High-Mounted Brake Lamp Bulb

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

M2

Right Tail Lamp Bulb

M4

Left Tail Lamp Bulb

MX5

Left Tail Lamp 2

M6

Left Rear Turn Signal Bulb

MX6

Right Tail Lamp 2

M16

Left Back-Up Lamp Bulb

M17

Right Back-Up Lamp Bulb

M25

High-Mounted Brake Lamp Bulb

T2ce

2-Pin Connector, Black

T4f

4-Pin Connector, Black

T8b

8-Pin Connector, Green

T8e

8-Pin Connector, Green

T10b

10-Pin Connector, Brown

T10c

10-Pin Connector, Black

T10q

10-Pin Connector, Black

T10s

10-Pin Connector, Brown

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

THK

Rear Lid Coupling Point

THKL

Coupling Point on Rear Lid, Left

VX25

Rear Lid Lock Unit

98

Ground Connection (in Rear Lid Wiring Harness)

*

For Vehicles Without LED Tail Lamps

*2

For Vehicles with LED Tail Lamps

*3

For Vehicles with External Audio Source Connection Without Electrical Interface
