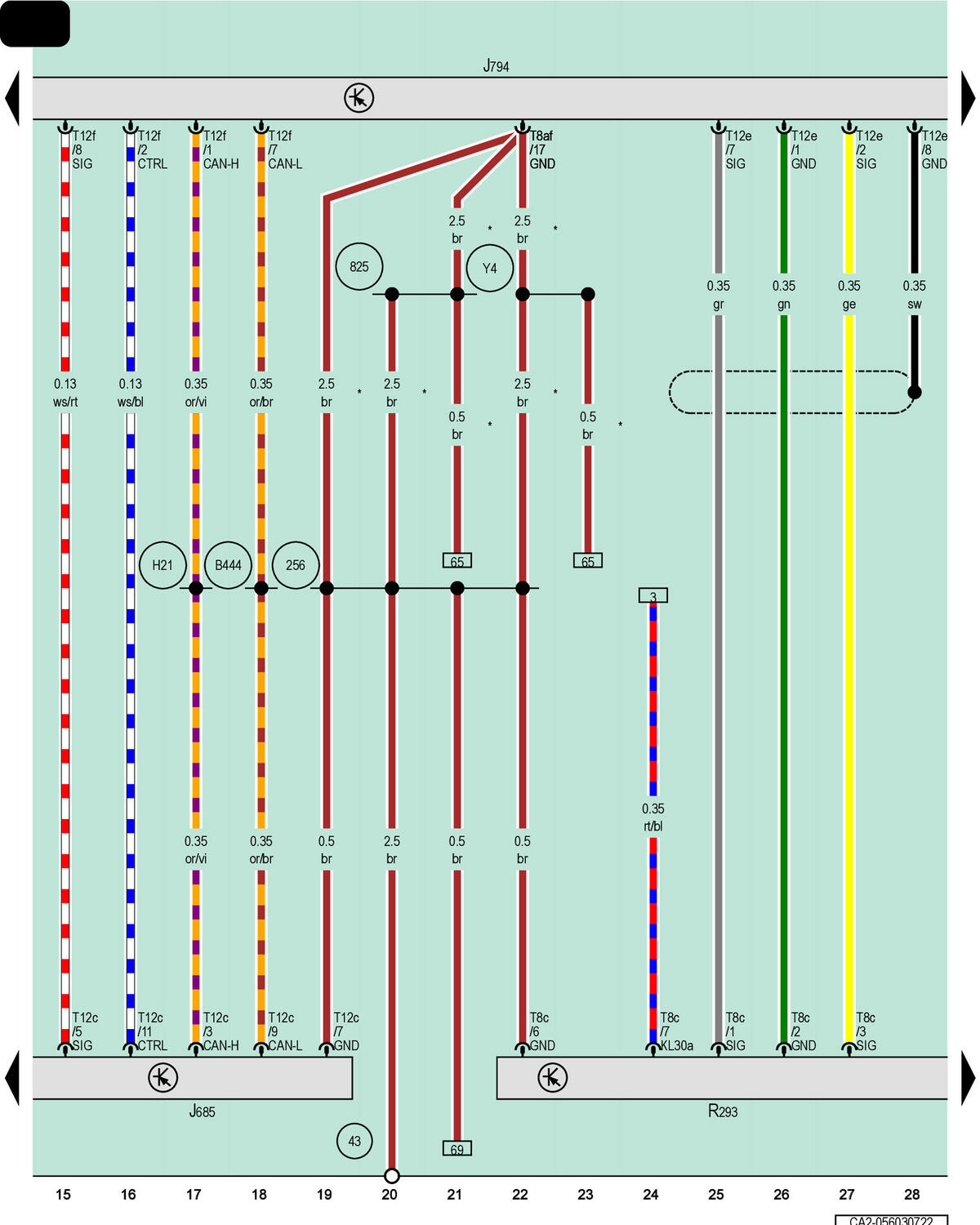

Front Information Display Control Head, Information Electronics Control Module 1, USB Distributor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

R293

USB Distributor

T8af

8-Pin Connector, Black

T8c

8-Pin Connector

T12c

12-Pin Connector, Black

T12e

12-Pin Connector, Green

T12f

12-Pin Connector, Gray

43

Ground Connection on A-Pillar, Lower Right

256

Ground Connection 2 (in Radio Wiring Harness)

825

Ground Connection 18 (in Interior Wiring Harness)

B444

OBD Connection 1 (in Main Wiring Harness)

H21

Connection 2 (in OBD Wiring Harness)

Y4

Connection 31L (in Interior Lamp Wiring Harness)

*

Depending on Equipment
