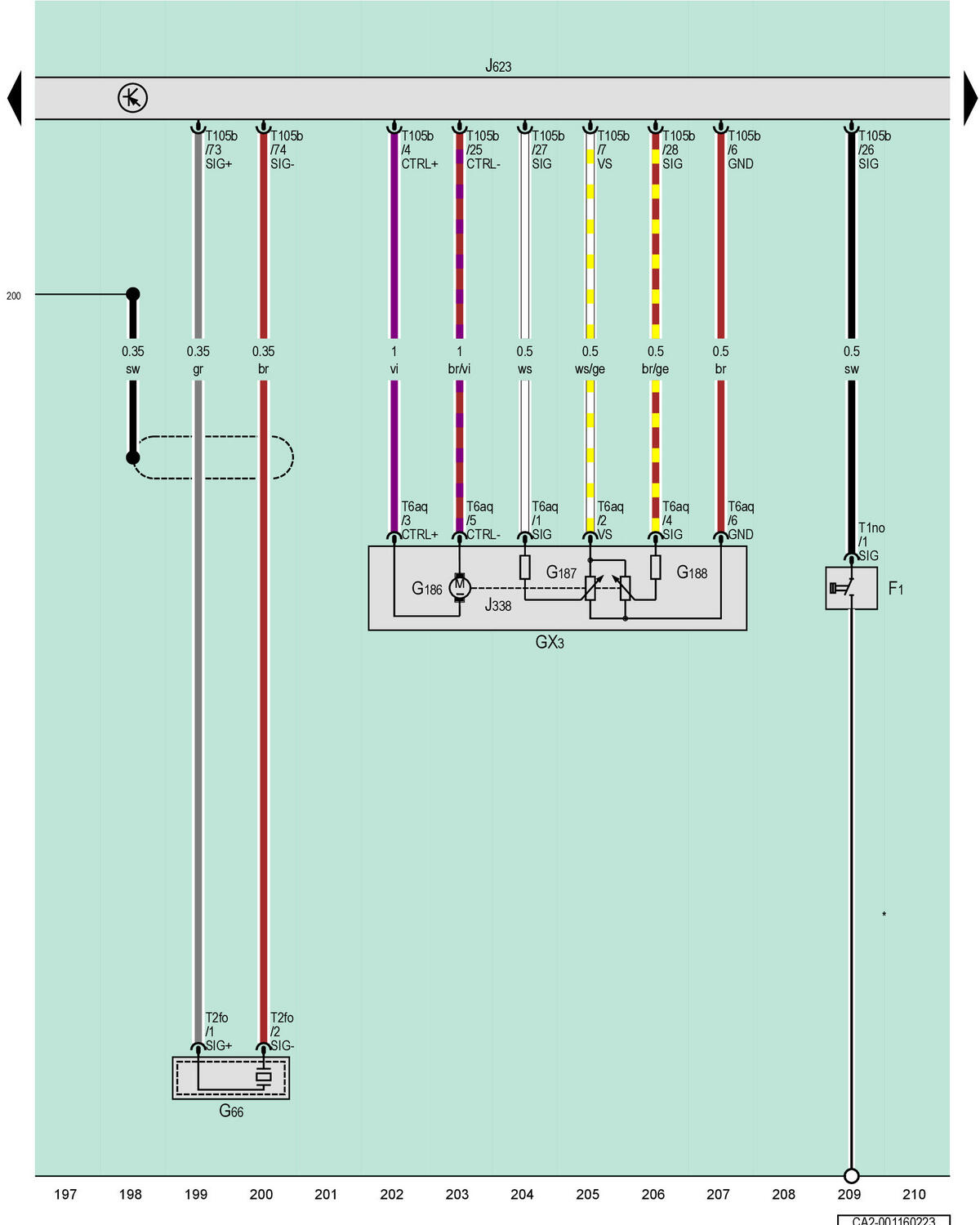

Oil Pressure Switch, Throttle Valve Control Module, Knock Sensor 2, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F1

Oil Pressure Switch

GX3

Throttle Valve Control Module

G66

Knock Sensor 2

G186

EPC Throttle Drive

G187

EPC Throttle Drive Angle Sensor 1

G188

EPC Throttle Drive Angle Sensor 2

J338

Throttle Valve Control Module

J623

Engine/Motor Control Module

T1no

1-Pin Connector, Black

T2fo

2-Pin Connector, Black

T6aq

6-Pin Connector, Black

T105b

105-Pin Connector, Black

200

Ground Connection Shielding (in Engine/Motor Compartment Wiring Harness)

*

Ground Supply via the Housing
