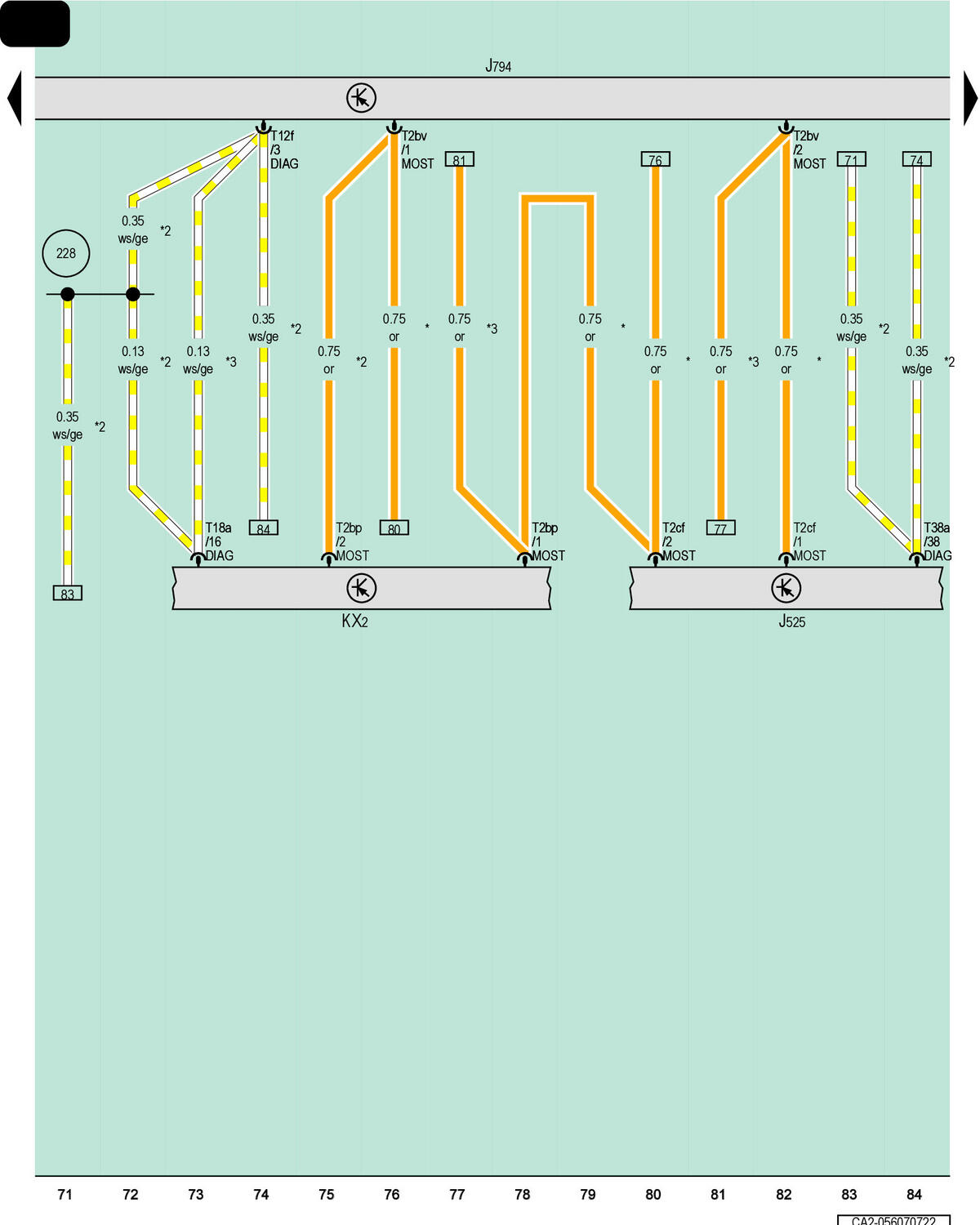

Digital Sound System Control Module, Information Electronics Control Module 1, Instrument Cluster
J525
Digital Sound System Control Module
J794
Information Electronics Control Module 1
KX2
Instrument Cluster
T2bp
2-Pin Connector, Black
T2bv
2-Pin Connector, Black
T2cf
2-Pin Connector, Black
T12f
12-Pin Connector, Gray
T18a
18-Pin Connector, Black
T38a
38-Pin Connector, Black
228
Connection (in Wiring Harness)
*
Fiber Optic Cable
*2
Depending on Equipment
*3
For Vehicles with 6 Passive Speakers
