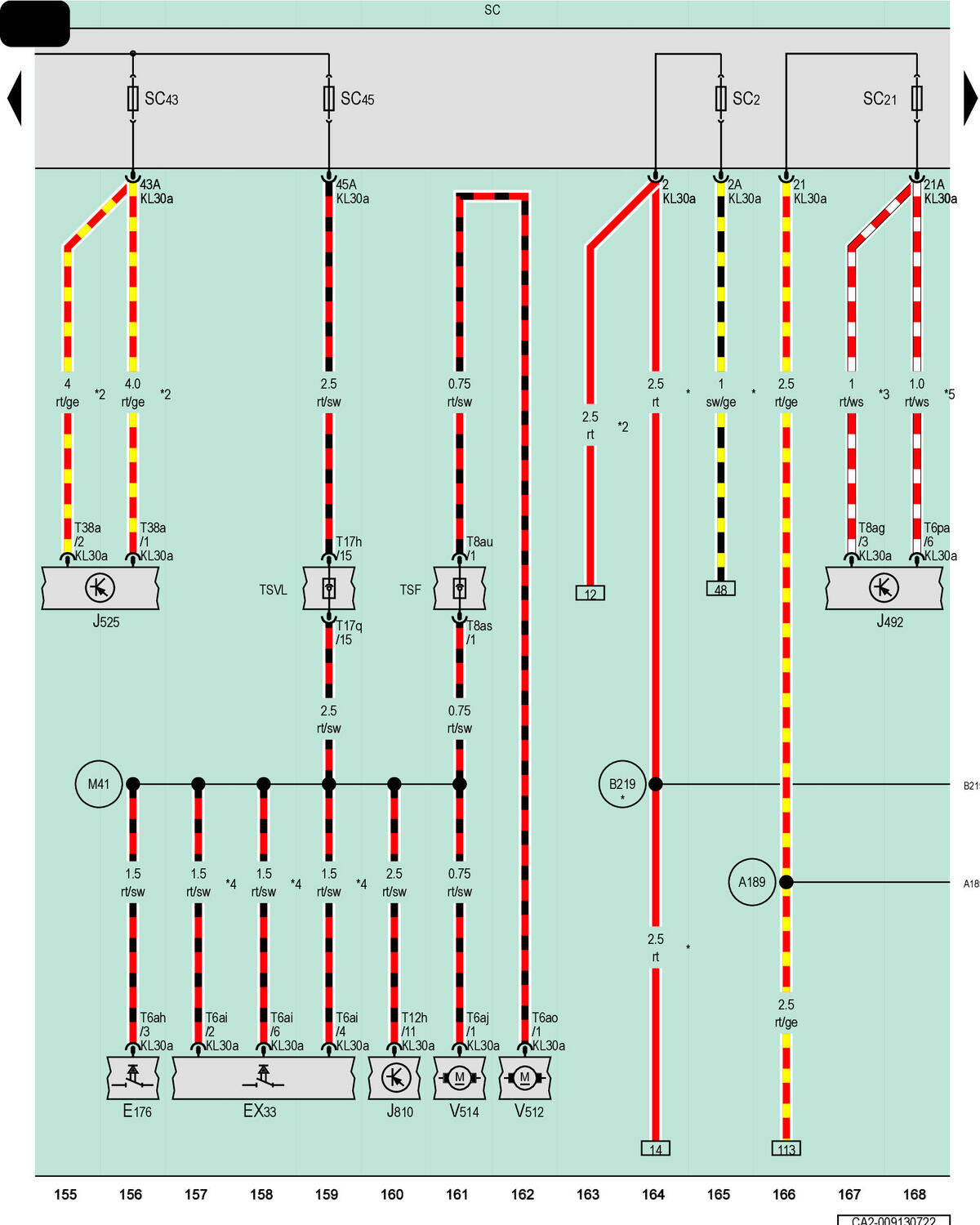

Left Front Seat Adjustment Control Head, Driver Seat Lumbar Support Adjustment Switch, All-Wheel Drive Control Module, Digital Sound System Control Module, Driver Seat Adjustment Control Module, Fuse Panel C, Left Front Seat Backrest Fan 1, Left Front Seat Cushion Fan 1
EX33
Left Front Seat Adjustment Control Head
E176
Driver Seat Lumbar Support Adjustment Switch
J492
All-Wheel Drive Control Module
J525
Digital Sound System Control Module
J810
Driver Seat Adjustment Control Module
SC
Fuse Panel C
SC2
Fuse 2 (On Fuse Panel C)
SC21
Fuse 21 (On Fuse Panel C)
SC43
Fuse 43 (On Fuse Panel C)
SC45
Fuse 45 (On Fuse Panel C)
T6ah
6-Pin Connector, Black
T6ai
6-Pin Connector, Black
T6aj
6-Pin Connector, Black
T6ao
6-Pin Connector, Black
T6pa
6-Pin Connector, Black
T8ag
8-Pin Connector, Black
T8as
8-Pin Connector, Black
T8au
8-Pin Connector, Black
T12h
12-Pin Connector, Black
T17h
17-Pin Connector, Red
T17q
17-Pin Connector, Red
T38a
38-Pin Connector, Black
TSF
Driver Seat Backrest Coupling Point
TSVL
Left Front Seat Coupling Station
V512
Left Front Seat Backrest Fan 1
V514
Left Front Seat Cushion Fan 1
A189
Positive Connection 5 (30a) (in Instrument Panel Wiring Harness)
B219
Positive Connection 4 (30a) (in Interior Wiring Harness)
M41
Connection 1 (in Driver Seat Wiring Harness)
*
For Vehicles with Heated Steering Wheel
*2
Depending on Equipment
*3
Through August 2021
*4
For Vehicles with Power Driver Seat Adjuster
*5
From August 2021
