Engine, Supporting In Installation Position

Special tools and workshop equipment required

• Engine Support Bridge: 10-222A
• Engine Support Bridge Adapter 35: 10-222A/35
• Engine Support - Bracket w/Spindle and Hook: 10-222A/10
• Engine/Gearbox Support Shackle (2 pc.): 10-222A/12

Support the Engine

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Unlock the retaining tab in direction of -arrow-, remove the left engine cover mount -1-.

Fig 1: Identifying Engine Cover Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the right mount -1- for the engine cover from the bracket -2-.

Fig 2: Identifying Engine Cover Mount And Locating Bore

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

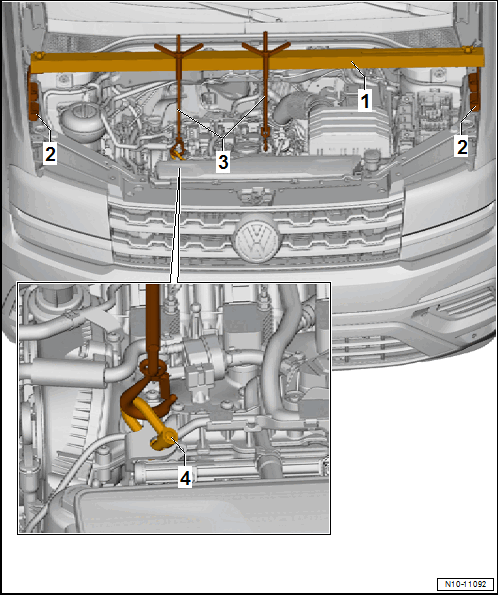

-- Secure the : 10-222A/12  as shown below, on the right lifting eye.

Position the : 10-222A  as Shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Square Pipe from the : 10-222A
2. : 10-222A/35
3. Spindles from the : 10-222A
4. : 10-222A/12
