Front Wheel Housing Underbody Protection

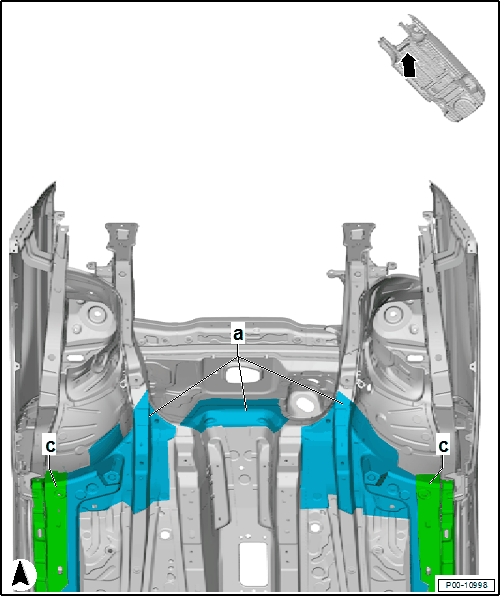

Fig 1: Front Wheel Housing Underbody Protection Areas
GWWP00-10998Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -  Underbody Protection
    • Layer Thickness 0.3 mm
  2. c -  Underbody Protection
    • Layer Thickness 1.2 mm
