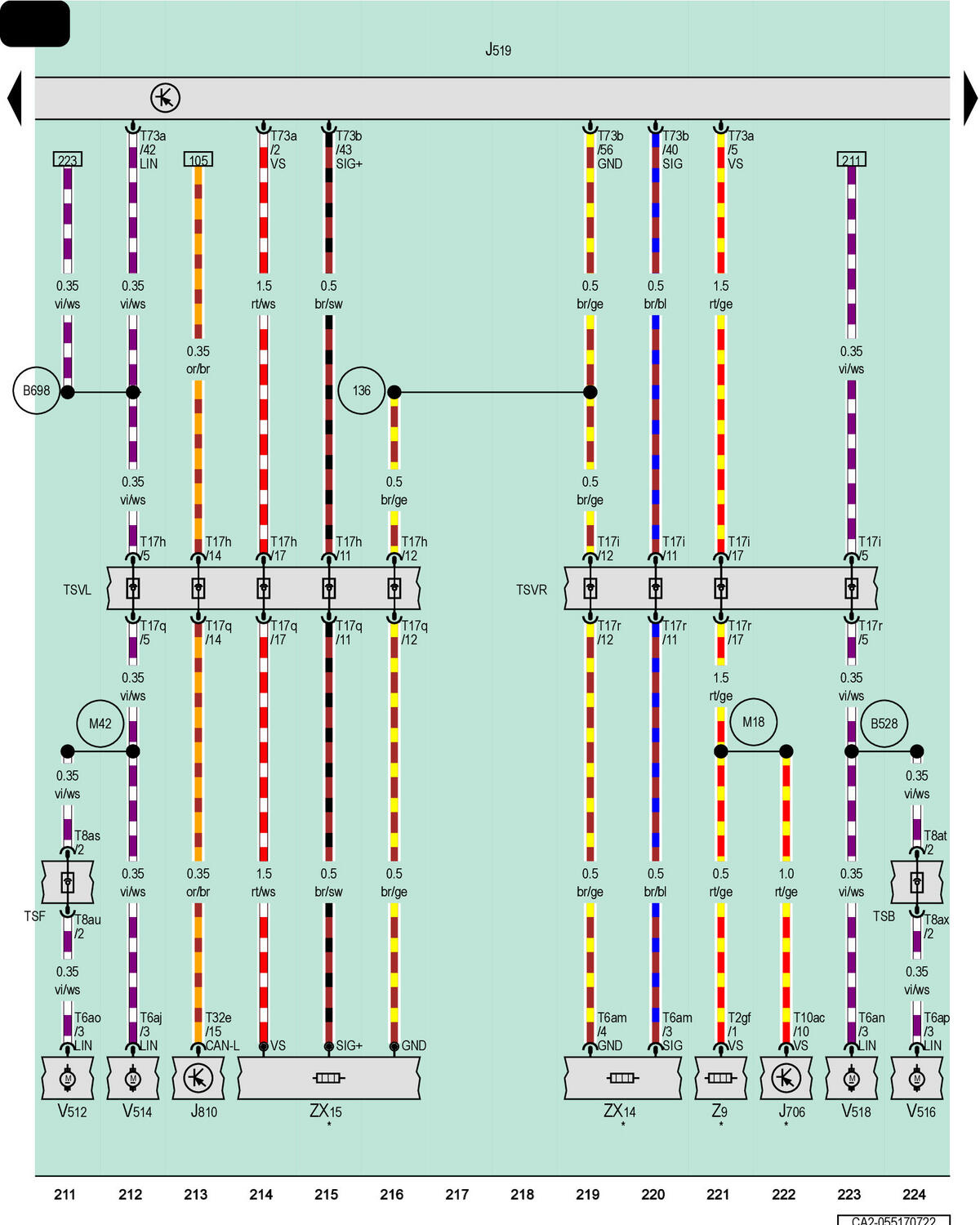

Vehicle Electrical System Control Module, Driver Side Heated Seat
J519
Vehicle Electrical System Control Module
J706
Seat Occupant Detection System Control Module
J810
Driver Seat Adjustment Control Module
T2gf
2-Pin Connector, Red
T6aj
6-Pin Connector, Black
T6am
6-Pin Connector, Black
T6an
6-Pin Connector, Black
T6ao
6-Pin Connector, Black
T6ap
6-Pin Connector, Black
T8as
8-Pin Connector
T8at
8-Pin Connector, Black
T8au
8-Pin Connector
T8ax
8-Pin Connector, Black
T10ac
10-Pin Connector, Black
T17h
17-Pin Connector, Red
T17i
17-Pin Connector, Red
T17q
17-Pin Connector, Red
T17r
17-Pin Connector, Red
T32e
32-Pin Connector, Gray
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
TSF
Driver Seat Backrest Coupling Point
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
V512
Left Front Seat Backrest Fan 1
V514
Left Front Seat Cushion Fan 1
V516
Right Front Seat Backrest Fan 1
V518
Right Front Seat Cushion Fan 1
Z9
Front Passenger Backrest Heating Element
ZX14
Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module
ZX15
Driver Side Heated Seat
136
Ground Connection 2 (in Heated Seats Wiring Harness)
B528
LIN Bus Connection 1 (in Main Wiring Harness)
B698
LIN Bus Connection 3 (in Main Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
M42
Connection 2 (in Driver Seat Wiring Harness)
*
Pre-Wired Component
