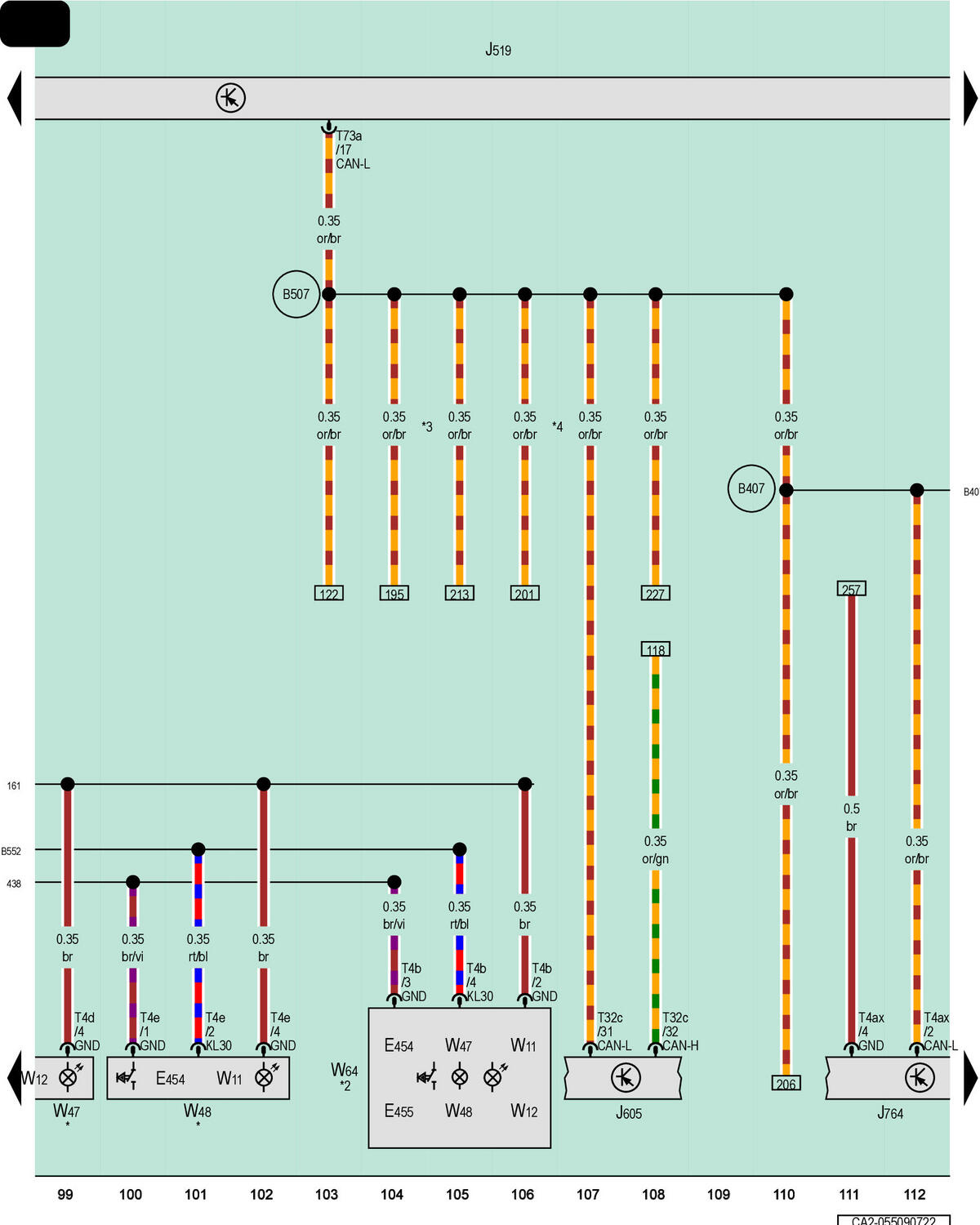

Left Rear Reading Lamp Switch, Right Rear Reading Lamp Switch, Vehicle Electrical System Control Module, Rear Lid Control Module, Electronic Steering Column Lock Control Module, Left Rear Reading Lamp, Right Rear Reading Lamp, Left Rear Interior Lamp, Right Rear Interior Lamp, Interior Lamp
E454
Left Rear Reading Lamp Switch
E455
Right Rear Reading Lamp Switch
J519
Vehicle Electrical System Control Module
J605
Rear Lid Control Module
J764
Electronic Steering Column Lock Control Module
T4ax
4-Pin Connector, Black
T4b
4-Pin Connector, Black
T4d
4-Pin Connector, Brown
T4e
4-Pin Connector, Black
T32c
32-Pin Connector, Naturally Cloudy
T73a
73-Pin Connector, Black
W11
Left Rear Reading Lamp
W12
Right Rear Reading Lamp
W47
Left Rear Interior Lamp
W48
Right Rear Interior Lamp
W64
Interior Lamp
161
Ground Connection (in Raised Roof Wiring Harness)
438
Ground Connection 3 (in Roof Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B507
Comfort CAN Bus Low Connection (in Interior Wiring Harness)
B552
Positive Connection 2 (in Roof Wiring Harness)
*
For Vehicles with a Sunroof
*2
For Vehicles Without a Sliding/Tilting Sunroof
*3
For Vehicles without Peripheral Camera
*4
For Vehicles with Peripheral Camera
