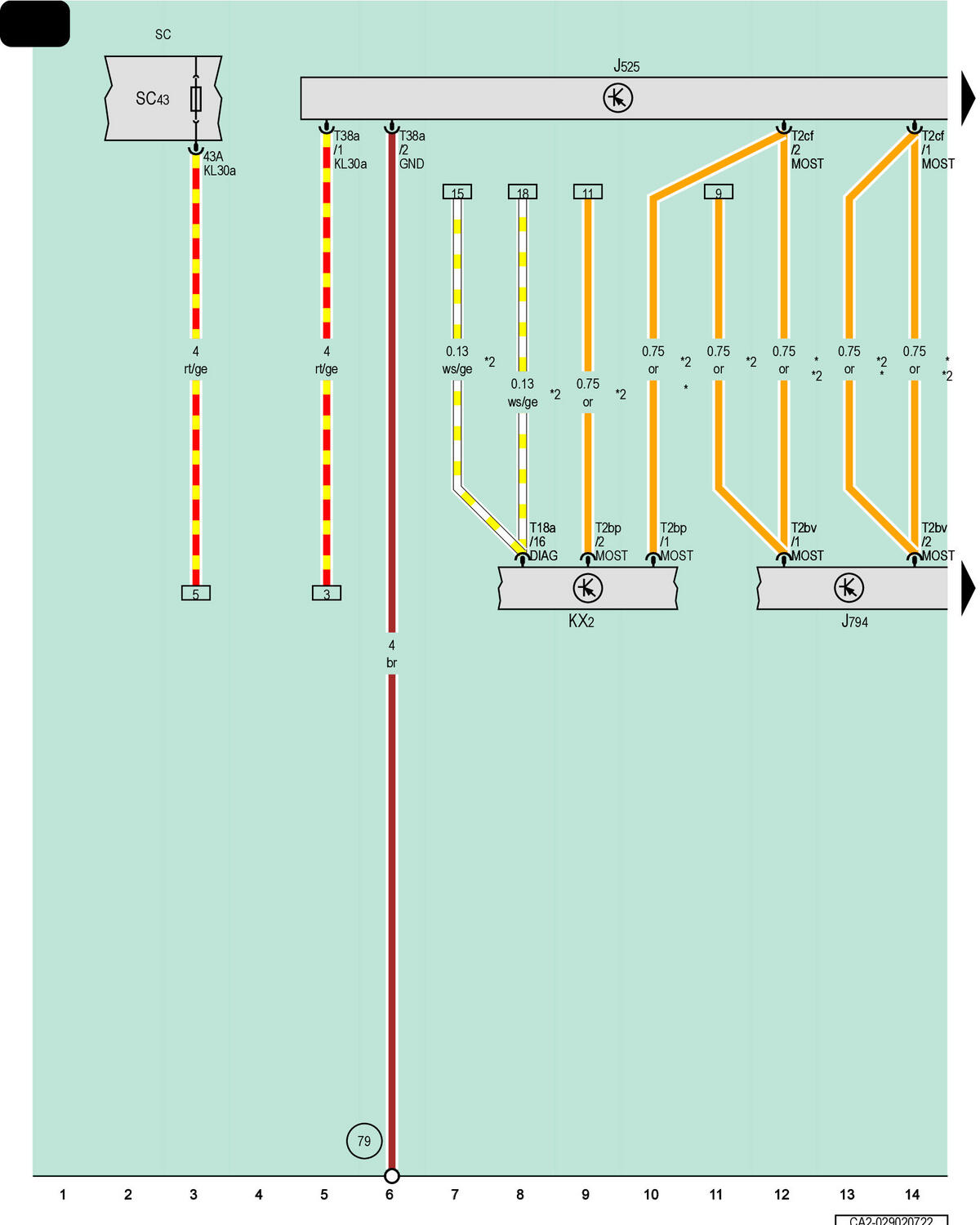

Digital Sound System Control Module, Information Electronics Control Module 1, Instrument Cluster, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

KX2

Instrument Cluster

SC

Fuse Panel C

SC43

Fuse 43 (On Fuse Panel C)

T2bp

2-Pin Connector, Black

T2bv

2-Pin Connector, Black

T2cf

2-Pin Connector, Black

T18a

18-Pin Connector, Black

T38a

38-Pin Connector, Black

79

Ground Connection on Left B-Pillar

*

Fiber Optic Cable

*2

Depending on Equipment
