Vehicle Electrical System Control Module, Fuse Panel C

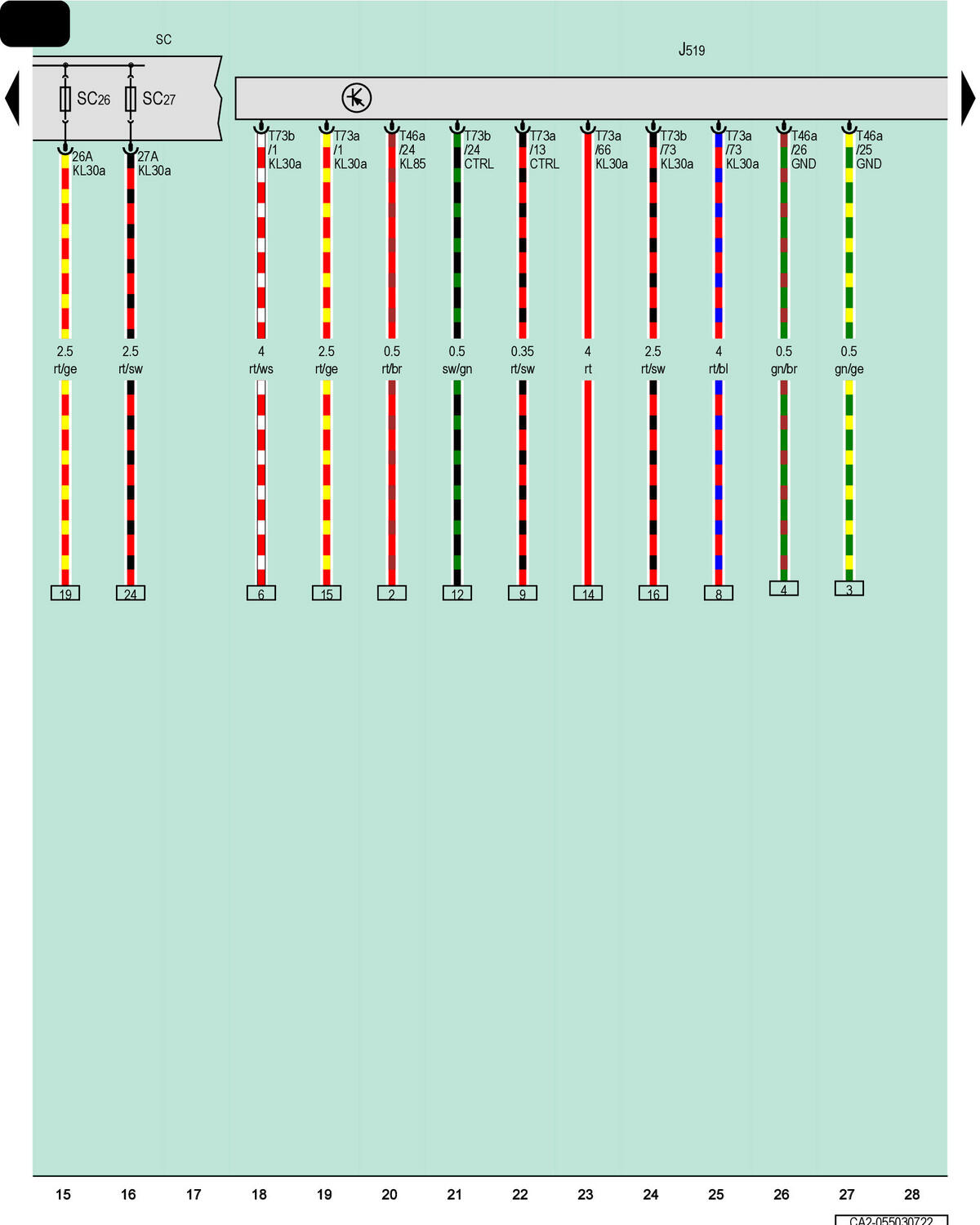

GWWCA2-055030722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

SC

Fuse Panel C

SC26

Fuse 26 (On Fuse Panel C)

SC27

Fuse 27 (On Fuse Panel C)

T46a

46-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black
