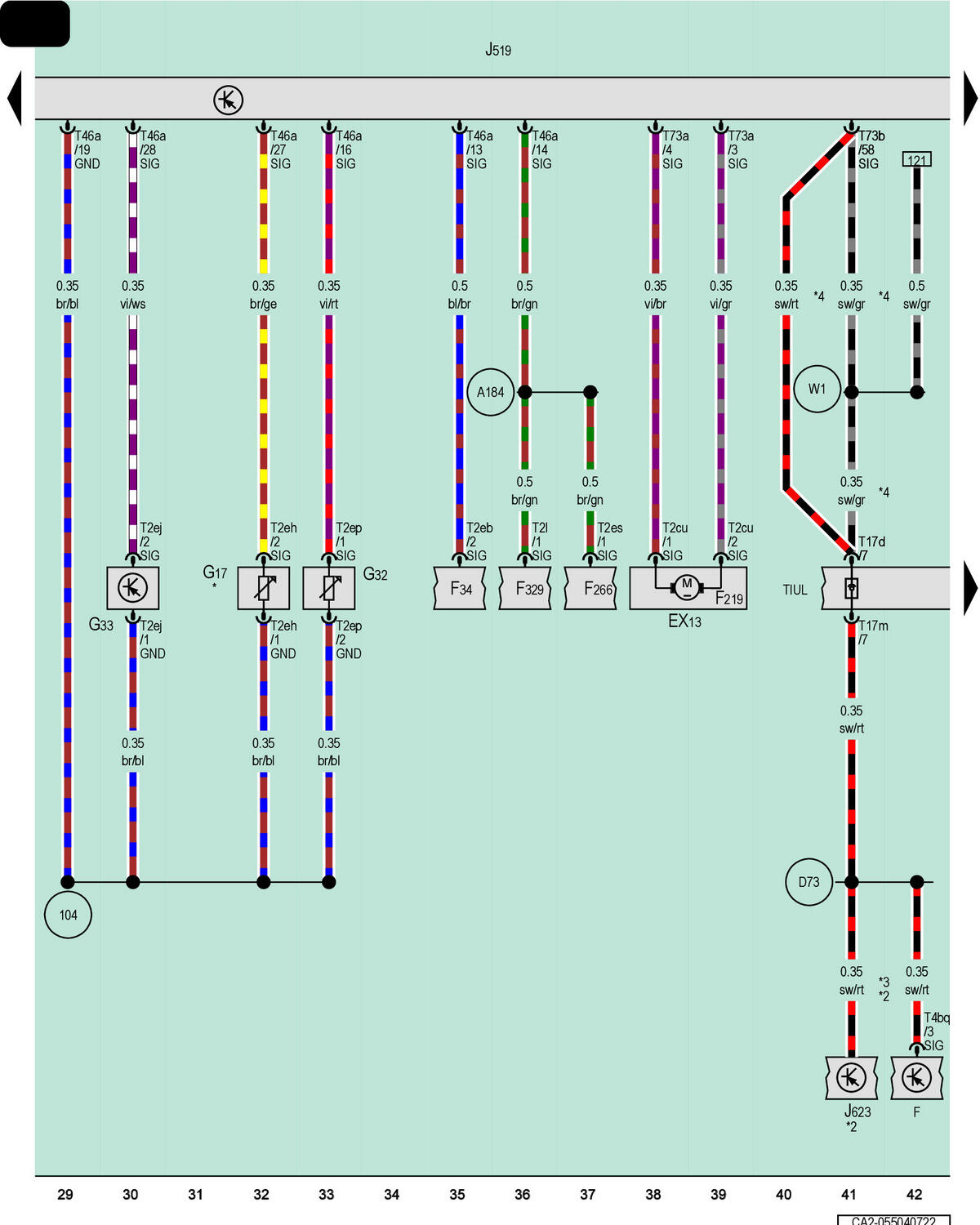

Brake Fluid Level Warning Switch, Fuel Filler Door Central Locking Actuator, Engine Hood Contact Switch, Outside Air Temperature Sensor, Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX13

Fuel Filler Door Unlock

F

Brake Lamp Switch

F34

Brake Fluid Level Warning Switch

F219

Fuel Filler Door Central Locking Actuator

F266

Engine Hood Contact Switch

F329

Hood Contact Switch 2

G17

Outside Air Temperature Sensor

G32

Engine Coolant Level Sensor

G33

Windshield Washer Fluid Level Sensor

J519

Vehicle Electrical System Control Module

J623

Engine/Motor Control Module

T2cu

2-Pin Connector, Black

T2eb

2-Pin Connector, Black

T2eh

2-Pin Connector, Black

T2ej

2-Pin Connector, Black

T2ep

2-Pin Connector, Black

T2es

2-Pin Connector, Black

T2l

2-Pin Connector, Black

T4bq

4-Pin Connector, Black

T17d

17-Pin Connector, Blue

T17m

17-Pin Connector, Blue

T46a

46-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

104

Ground Connection (in Right Front Wiring Harness), Sensor Grounds

A184

Hood Contact Switch Connection (in Instrument Panel Wiring Harness)

D73

Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)

W1

Positive Connection 1 (54) (in Rear Wiring Harness)

*

Pre-Wired Component

*2

Refer to Applicable Engine Wiring Diagram

*3

Diameter Depends on Equipment

*4

Depending on Equipment
