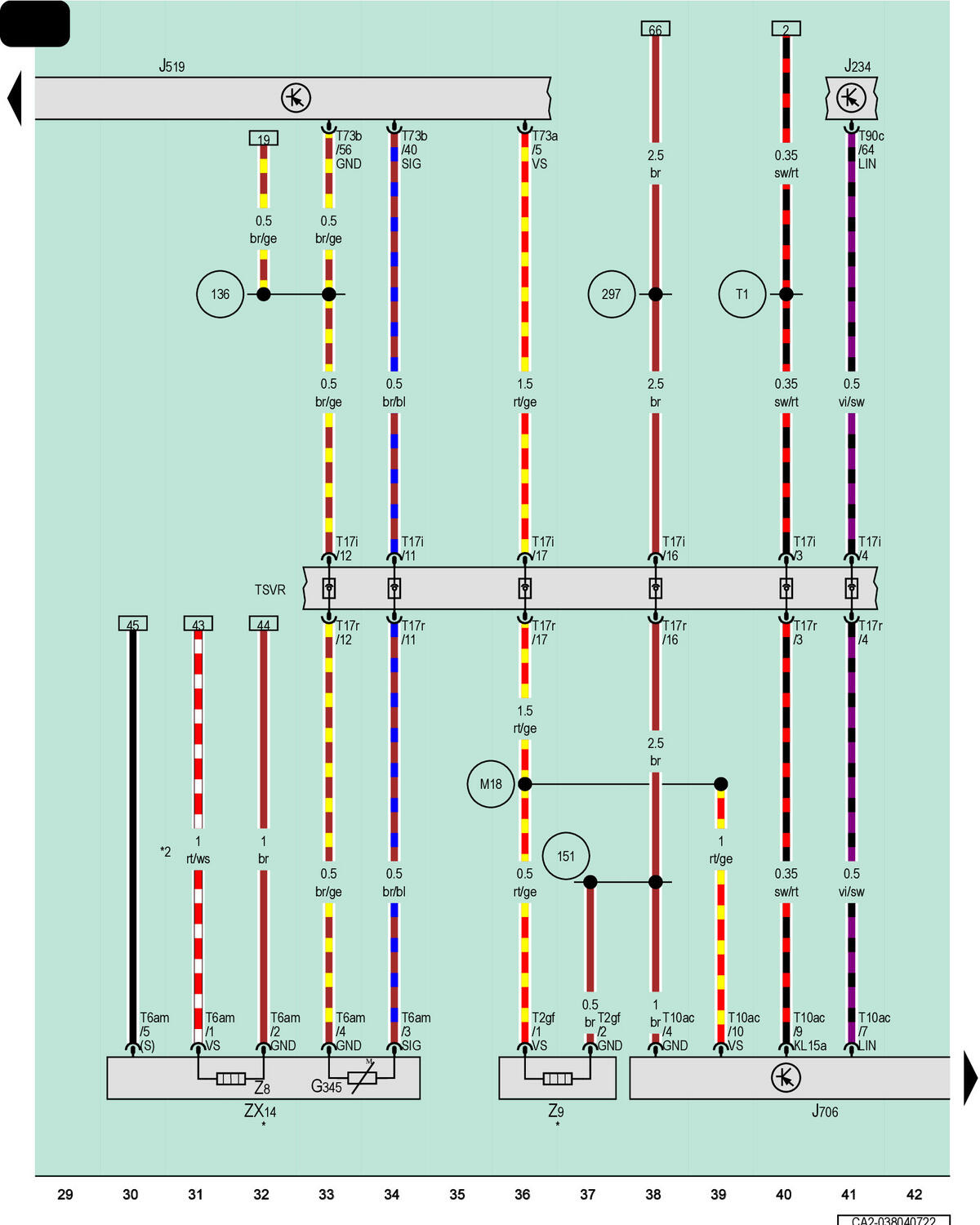

Airbag Control Module, Vehicle Electrical System Control Module, Seat Occupant Detection System Control Module, Front Passenger Seat Heating Element, Front Passenger Backrest Heating Element, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module
G345
Right Front Seat Temperature Sensor
J234
Airbag Control Module
J519
Vehicle Electrical System Control Module
J706
Seat Occupant Detection System Control Module
T2gf
2-Pin Connector, Red
T6am
6-Pin Connector, Black
T10ac
10-Pin Connector, Black
T17i
17-Pin Connector, Red
T17r
17-Pin Connector, Red
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
T90c
90-Pin Connector, Yellow
TSVR
Right Front Seat Coupling Station
Z8
Front Passenger Seat Heating Element
Z9
Front Passenger Backrest Heating Element
ZX14
Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module
136
Ground Connection 2 (in Heated Seats Wiring Harness)
151
Ground Connection 1 (in Front Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
T1
Positive Connection 1 (in Airbag Wiring Harness)
*
Pre-Wired Component
*2
The Color of the Wires Depends on Vehicle Equipment
