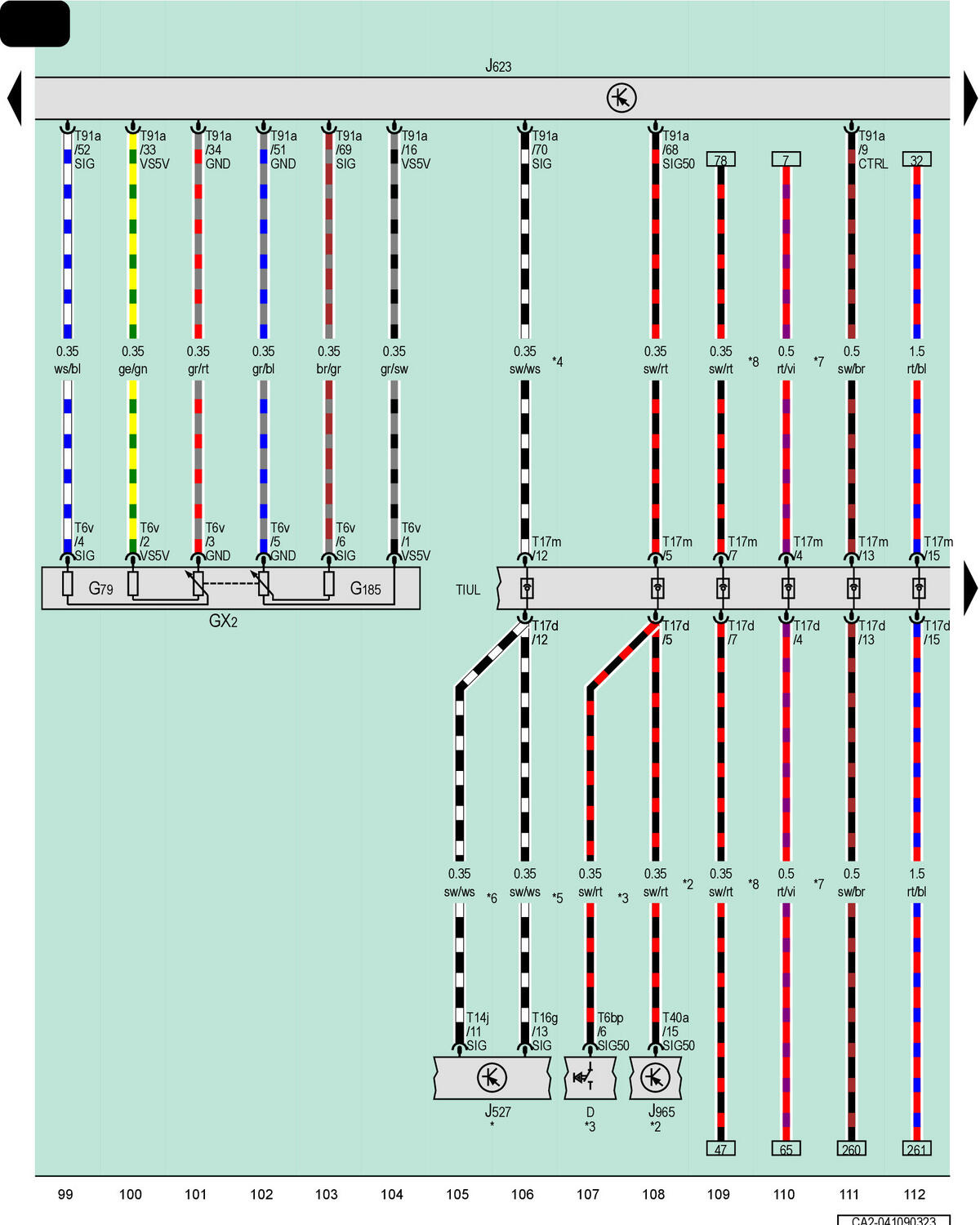

Ignition/Starter Switch, Accelerator Pedal Module, Steering Column Electronics Control Module, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D

Ignition/Starter Switch

GX2

Accelerator Pedal Module

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

J965

Access/Start System Interface

T6bp

6-Pin Connector, Black

T6v

6-Pin Connector, Black

T14j

14-Pin Connector, Black

T16g

16-Pin Connector, Black

T17d

17-Pin Connector, Blue

T17m

17-Pin Connector, Blue

T40a

40-Pin Connector, Black

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

*

Refer to Applicable Steering Column Electronics Wiring Diagram

*2

For Vehicles with Access/Start Authorization System

*3

For Vehicles Without Access/Start Authorization System

*4

For Vehicles with Cruise Control System

*5

For Vehicles Without Heated Steering Wheel

*6

For Vehicles with Heated Steering Wheel

*7

For Vehicles with Parking Heater Radio Receiver

*8

For Vehicles Without Trailer Mode; Refer to Trailer Mode Wiring Diagram for Vehicles with Trailer Mode
