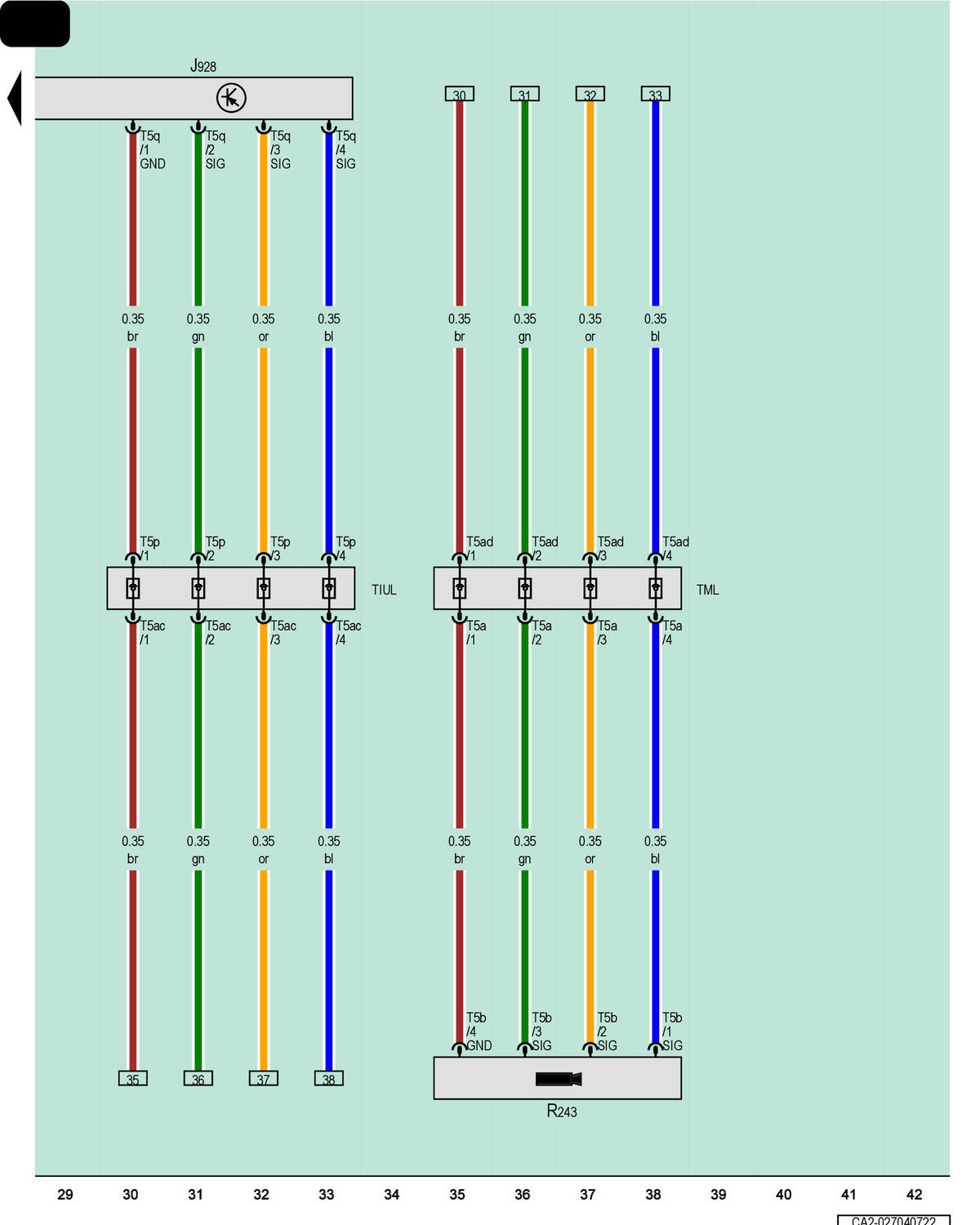

Peripheral Camera Control Module, Front Peripheral Camera

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J928

Peripheral Camera Control Module

R243

Front Peripheral Camera

T5a

5-Pin Connector, Blue

T5ac

5-Pin Connector, Black

T5ad

5-Pin Connector, Blue

T5b

5-Pin Connector, Black

T5p

5-Pin Connector, Black

T5q

5-Pin Connector, White

TIUL

Coupling Point in Interior, Bottom Left

TML

Coupling Point in Engine/Motor Compartment, Left
