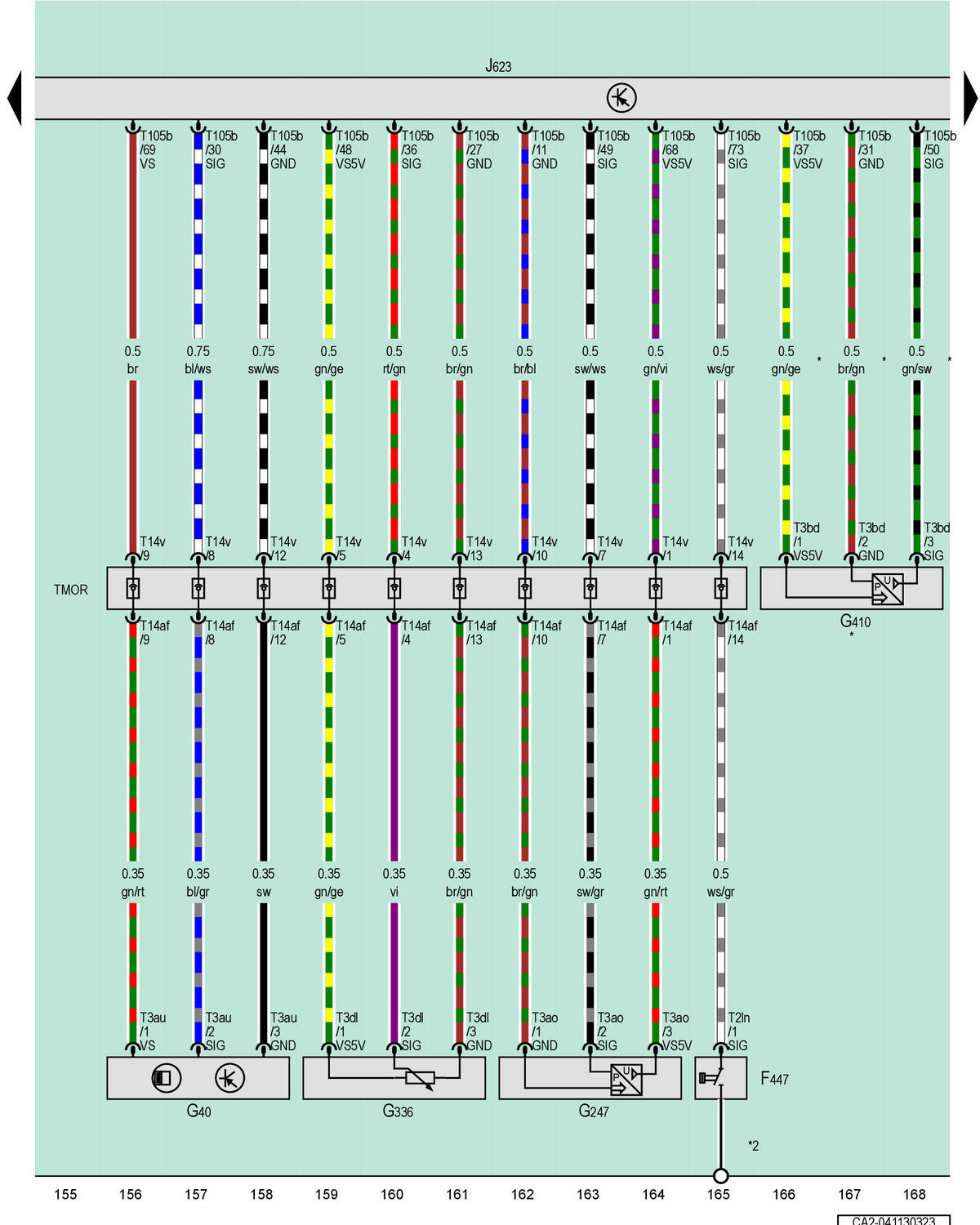

Oil Pressure Switch, Level 3, Camshaft Position Sensor, Fuel Pressure Sensor, Intake Manifold Runner Position Sensor, Low Fuel Pressure Sensor, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F447

Oil Pressure Switch, Level 3

G40

Camshaft Position Sensor

G247

Fuel Pressure Sensor

G336

Intake Manifold Runner Position Sensor

G410

Low Fuel Pressure Sensor

J623

Engine/Motor Control Module

T2ln

2-Pin Connector, Black

T3ao

3-Pin Connector, Black

T3au

3-Pin Connector, Black

T3bd

3-Pin Connector, Blue

T3dl

3-Pin Connector, Black

T14af

14-Pin Connector, Black

T14v

14-Pin Connector, Black

T105b

105-Pin Connector, Black

TMOR

Coupling Point on Engine, Top Right

*

Depending on Equipment

*2

Ground Supply via the Housing
