Overview - Emissions Control System

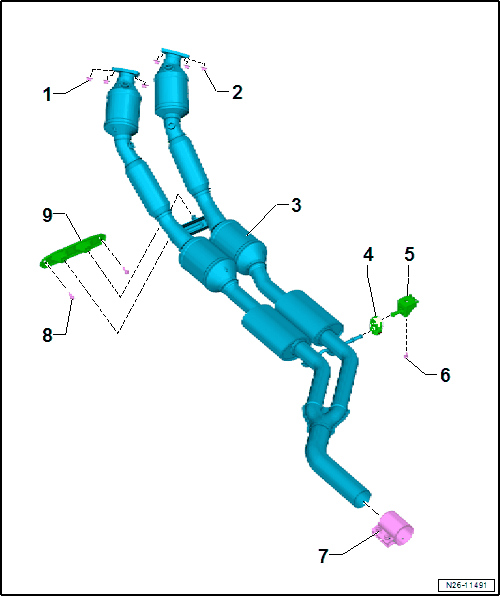

Fig 1: Exploded View Of Emissions Control System
GWWN26-11491Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Nuts
    • 40 Nm
    • Replace after removing
    • Coat the threads of the stud bolts with hot bolt paste
  2. Nuts
    • 40 Nm
    • Replace after removing
    • Coat the threads of the stud bolts with hot bolt paste
  3. Front Exhaust Pipe with Catalytic Converters and Front Mufflers
  4. Retaining Loop
    • Replace if damaged
  5. Bracket
  6. Bolt
    • 20 Nm
  7. Clamping Sleeve
    • Installation position. Refer to Figure.
    • Tighten the threaded connections evenly
    • 30 Nm
  8. Bolts
    • 20 Nm
  9. Exhaust System Bracket to Subframe
